Removal And Installation

Turn Ignition Switch Off And Disconnect The Battery Negative (-) Terminal.
Remove The Drive Belt.
(Refer To Engine Mechanical System - "Drive Belt ")

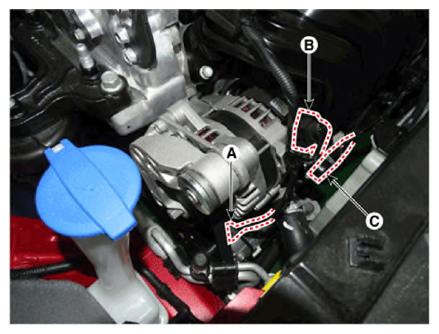

Disconnect The Air Compressor Connector (A) And The Alternator Connector (B), And Remove The Cable (C) From Alternator "B" Terminal.
Alternator B-Terminal Cable Mounting Nut:

18.6 - 24.5 N.M (1.9 - 2.5 Kgf.M, 4.1 - 5.5 Lb-Ft)

Courtesy of KIA MOTORS AMERICA, INC.

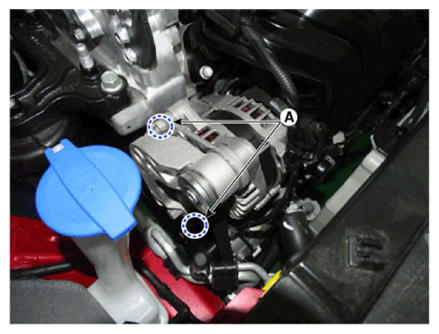

Loosen The Mounting Bolts (A).
Alternator Lower Bolt:

29.4 - 41.2 N.M (3.0 - 4.2 Kgf.M, 21.7 - 30.4 Lb-Ft)

Courtesy of KIA MOTORS AMERICA, INC.

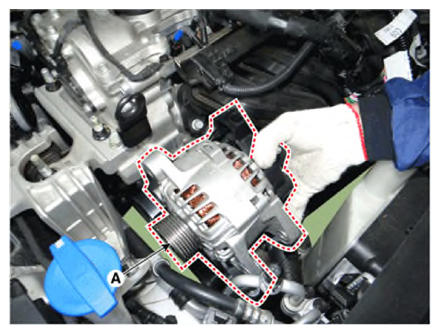

Remove The Alternator (A).

Courtesy of KIA MOTORS AMERICA, INC.
Install In The Reverse Order Of Removal.
