Repair Procedures: Replacement

WARNING: This page is about a different car, the 2020 Hyundai Kona. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

Put on gloves to prevent hand injuries.

Information

When Removing With A Flat-Tip Screwdriver Or Remover, Wrap Protective Tape Around The Tools To Prevent Damage To Components.
Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
Take care not to bend or scratch the trim and panels.

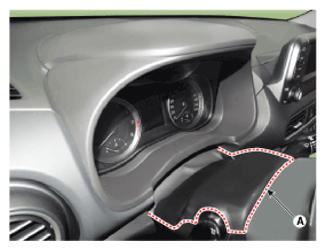

Using a screwdriver or remover, remove the steering column shroud upper panel (A).

Courtesy of HYUNDAI MOTOR AMERICA

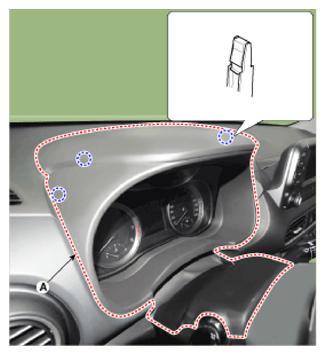

Using a screwdriver or remover, remove the cluster fascia panel (A).

Courtesy of HYUNDAI MOTOR AMERICA
To install, reverse the removal procedure.
Information
- Replace any damaged clips (or pin-type retainers).
