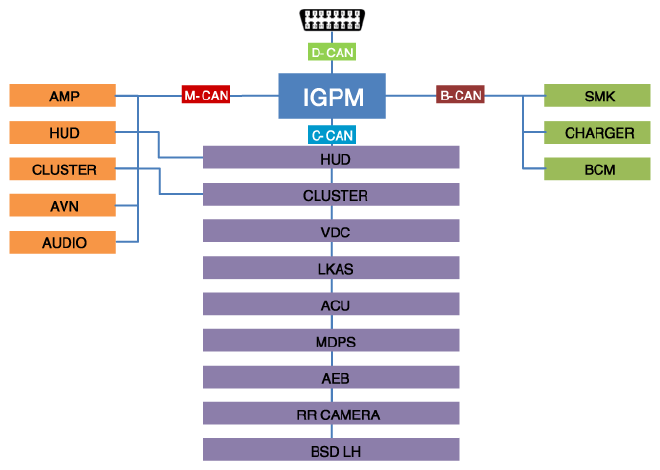

Communication Network Diagram
WARNING: This page is about a different car, the 2020 Hyundai Kona. However, it is still accessible from the selected car via links, so may be relevant.
| Abbreviation | Explanation |
|---|---|
| ACU | Airbag Control Unit |
| AEB | Autonomous Emergency Braking |
| B_CAN | Body Controller Area Network |
| BCM | Body Control Module |
| BCW | Blind-Spot Collision Warning Indicator |
| C_CAN | Chassis Controller Area Network |
| CLU | Cluster Module |
| AMP | Amplifier |
| AVN | Head Unit (Audio/AVN) |
| CAMERA | Rear View Camera |
| M_CAN | Multi media Controller Area Network |
| MDPS | Motor Driven Power Steering |
| P_CAN | Powertrain Controller Area Network |
| SJB | Smart Junction Block |
| SMK | Smart Key Unit |
