Repair Procedures: Installation

Install in the reverse order of removal.

NOTE:

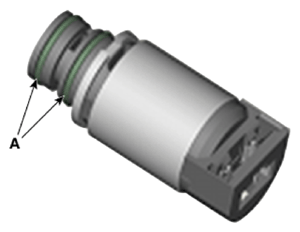

When installing, apply the ATF oil or petroleum jelly to the O-rings (A) to prevent damage.

Courtesy of KIA MOTORS AMERICA, INC.

The existing valve body cover gasket (A) must be replaced with a new one. (Do not reuse it.)

Courtesy of KIA MOTORS AMERICA, INC.

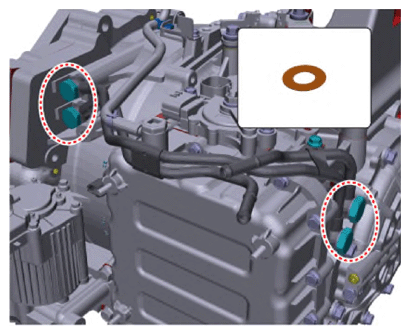

The existing eyebolt washers (8 pcs) must be replaced with new ones. (Do not reuse them.)

Courtesy of KIA MOTORS AMERICA, INC.

Perform the procedures below after installing.

Refill the automatic transaxle with fluid.
(Refer to Hydraulic System - "FLUID ")
Refill the engine & transaxle system with coolant.
(Refer to Engine Mechanical System - "COOLANT ")
Refill the hybrid motor cooling system with coolant and then perform the air bleeding using the KDS.
(Refer to Hybrid Motor System - "COOLANT ")

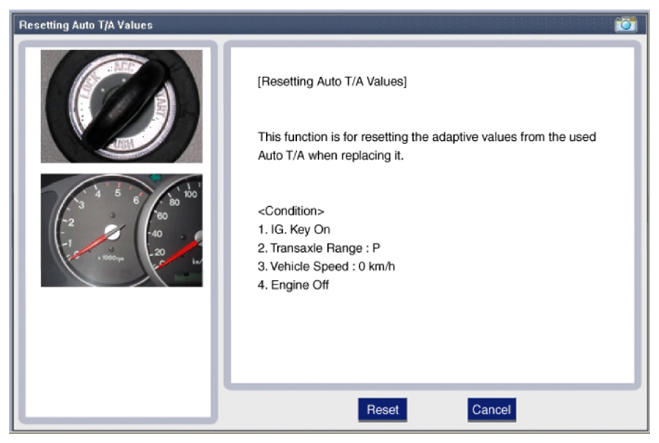

Reset the automatic transaxle adaptive values using the KDS.

Courtesy of KIA MOTORS AMERICA, INC.

Perform the TCM adaptive values learning procedure.
(Refer to Automatic Transaxle Control System - "ADJUSTMENT ")
Confirm that there is no fluid leakage on connections in the engine starting condition.
