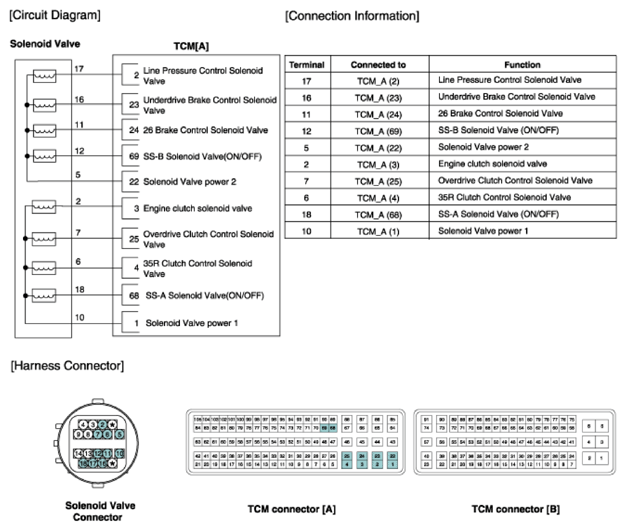

Home >> Kia >> 2020 >> Optima Plug-In Hybrid EX >> Repair and Diagnosis >> Transmission >> Transmission Control Systems >> Automatic Transaxle Control System (PHEV) >> Engine Clutch Control Solenoid Valve (E-C VFS) >> Schematic Diagrams >> Circuit Diagram
