Description & Operation: Description

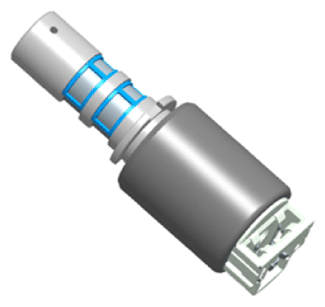

Engine clutch control solenoid valve is a Variable Force Solenoid (VFS) type.
When TCM supplies variable current to solenoid valve, hydraulic pressure of engine clutch is controlled by solenoid valve.

Courtesy of KIA MOTORS AMERICA, INC.
