Repair Procedures: Removal

NOTE: If working with Diagnostic Trouble Code (DTC) P1744 (engine clutch malfunction) requiring replacement of drive motor is indicated, replace motor and transaxle at as a complete unit.
  1. Remove the automatic transaxle.

    (Refer to Automatic Transaxle System - "AUTOMATIC TRANSAXLE ")

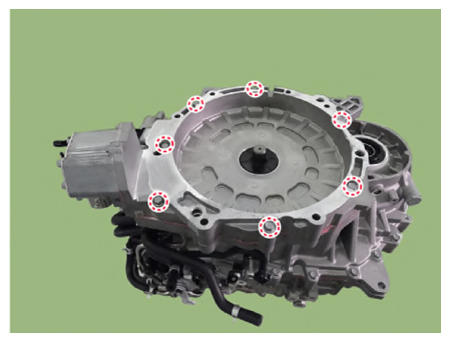

  2. Remove the motor assembly mounting bolts.
    G13365452Courtesy of KIA MOTORS AMERICA, INC.

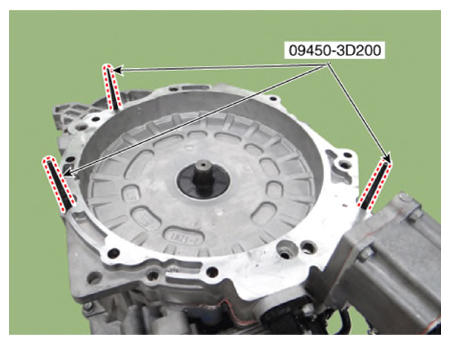

  3. Install the motor removal/installation guide (09450-3D200).
    G13365453Courtesy of KIA MOTORS AMERICA, INC.

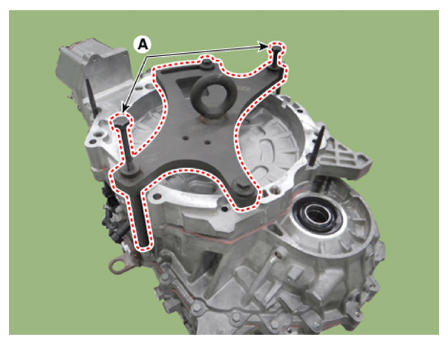

  4. After installing the motor removal/installation jig (09365-3D630), separate the motor assembly from automatic transaxle by tightening the bolts (A).
    G13365454Courtesy of KIA MOTORS AMERICA, INC.
    NOTE: Tighten the bolts (A) in turns.

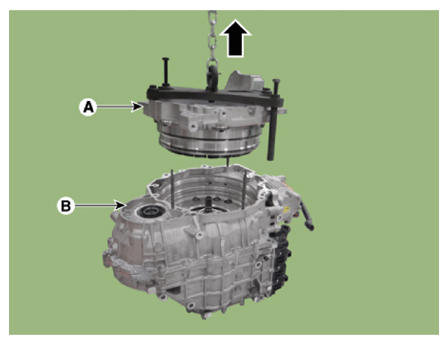

  5. By using a jack, lift off the motor assembly (A) from the automatic transaxle (B).
    G13365455Courtesy of KIA MOTORS AMERICA, INC.
    NOTE:
    • Keep foreign substances away from the motor coil part.
    • Be careful not to touch ground with motor coil part.
    • Be careful not to impact the motor assembly as it may get damaged.

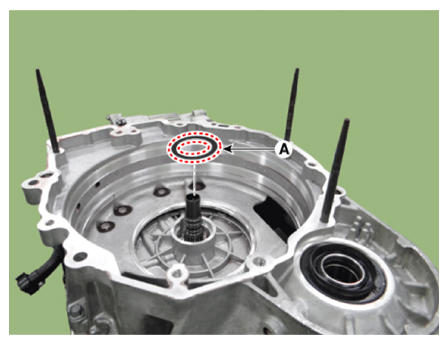

  6. Remove the spacer (A).
    G13365456Courtesy of KIA MOTORS AMERICA, INC.

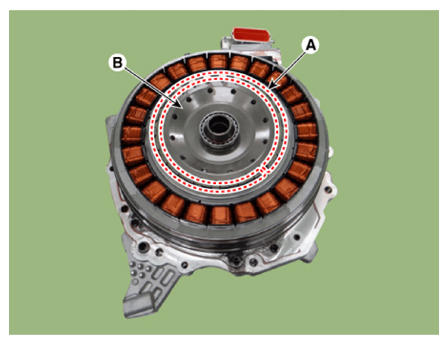

  7. After removing the snap ring (A), remove the engine clutch assembly (B).
G13365457Courtesy of KIA MOTORS AMERICA, INC.
