Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the negative (-) battery terminal.
  2. Remove the crash pad center panel.

    (Refer to Body - "CRASH PAD CENTER PANEL ")

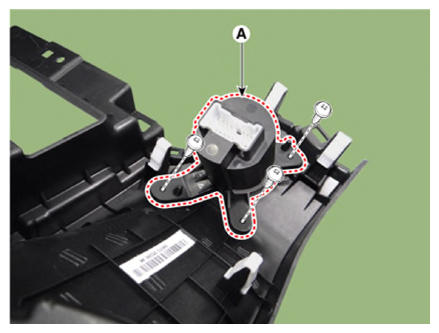

  3. Remove the start/stop button assembly (A) after loosening the screws.
G13390228Courtesy of KIA MOTORS AMERICA, INC.
