Ground Circuit Inspection
WARNING: This page is about a different variant/trim than selected.
- Ignition "OFF"
- Disconnect passenger side body sensor ECU connector.

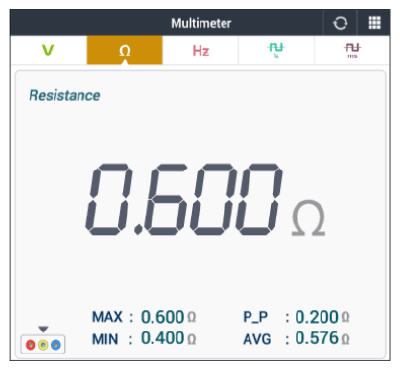

- Measure resistance between Pin No. 4 (Ground) terminal of the passenger side body sensor ECU harness connector and chassis ground.
Specification : below 1Ω
- Is the measured resistance within specification?
YES
- Repair as necessary and then go to "BODY SENSOR RESET " and "Verification of Vehicle Repair" procedure.
NO
- Carefully re-do this troubleshooting guide steps.
- If problem still occurs, replace OCS ECU and then go to "BODY SENSOR RESET " and "Verification of Vehicle Repair" procedure.
