Monitor KDS Data
WARNING: This page is about a different variant/trim than selected.
- Ignition "OFF", connect KDS.
- Ignition "ON", select "Current Data" mode.

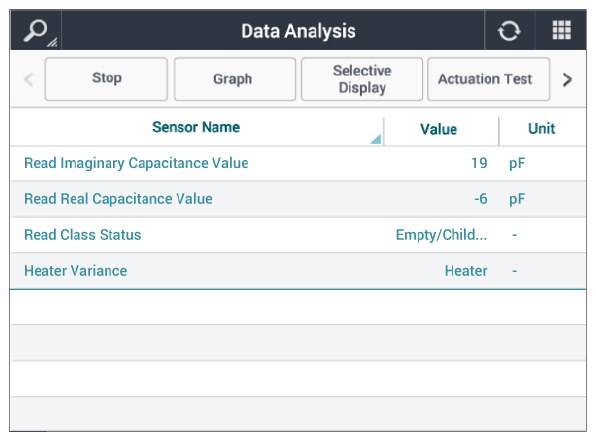

- Monitor the "Read Class Status" parameter on the KDS.
- Has a problem been found?
YES
- Go to "SYSTEM INSPECTION " procedure.
NO
- Check module connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and then go to "BODY SENSOR RESET " and "Verification of Vehicle Repair" procedure.
