Cluster module variant coding

WARNING: This page is about a different variant/trim than selected.
  1. Verify vehicle options and have VIN code in hand.
  2. Perform "CLU Variant Coding" in the "Vehicle S/W Management" with KDS.
  3. Check for DTCs in the system.

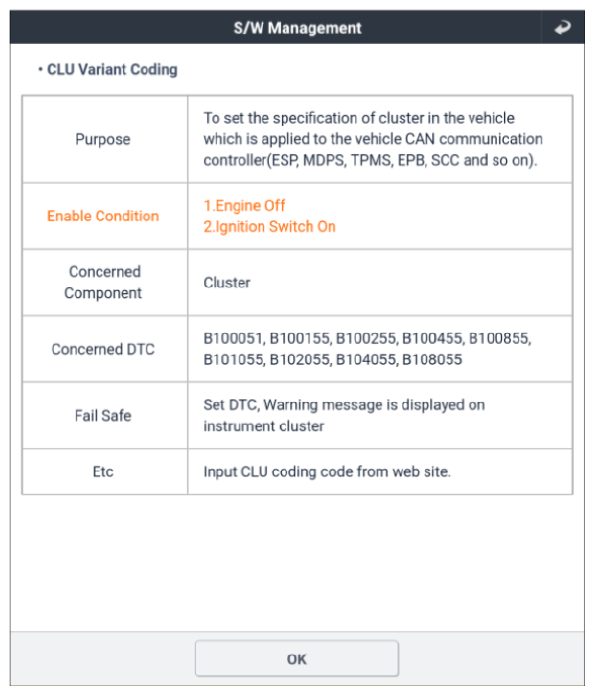

    G13394270Courtesy of KIA MOTORS AMERICA, INC.

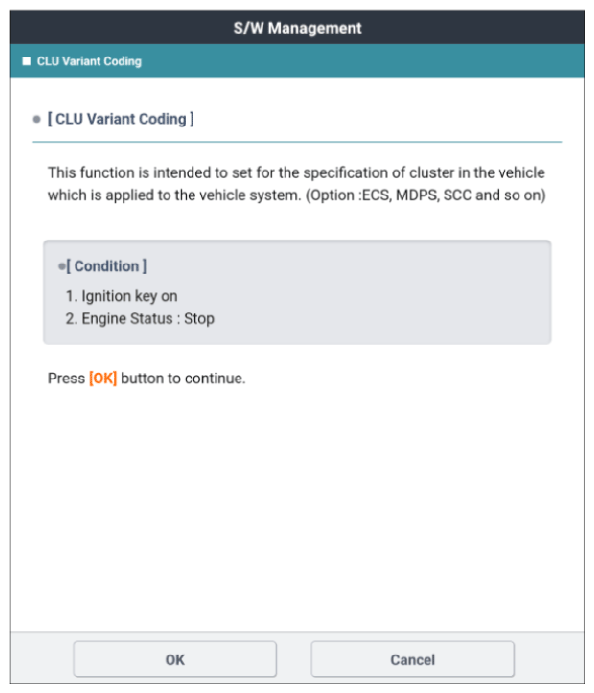

    G13394271Courtesy of KIA MOTORS AMERICA, INC.

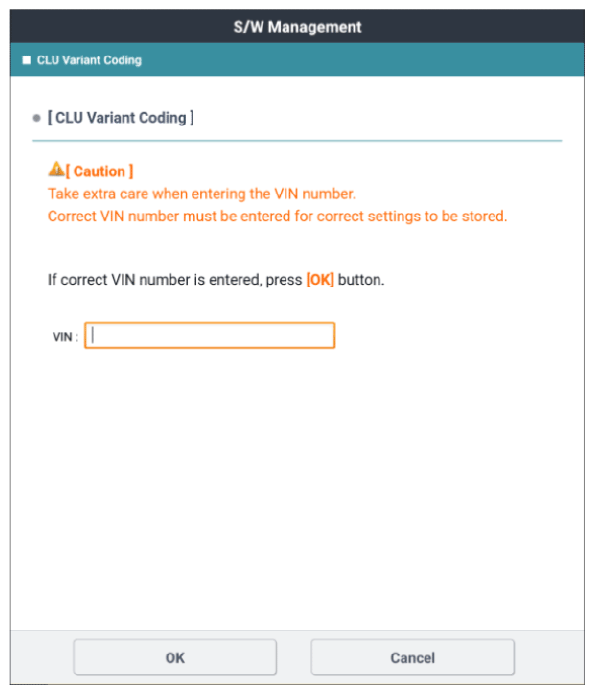

    G13394272Courtesy of KIA MOTORS AMERICA, INC.
    G13394273Courtesy of KIA MOTORS AMERICA, INC.

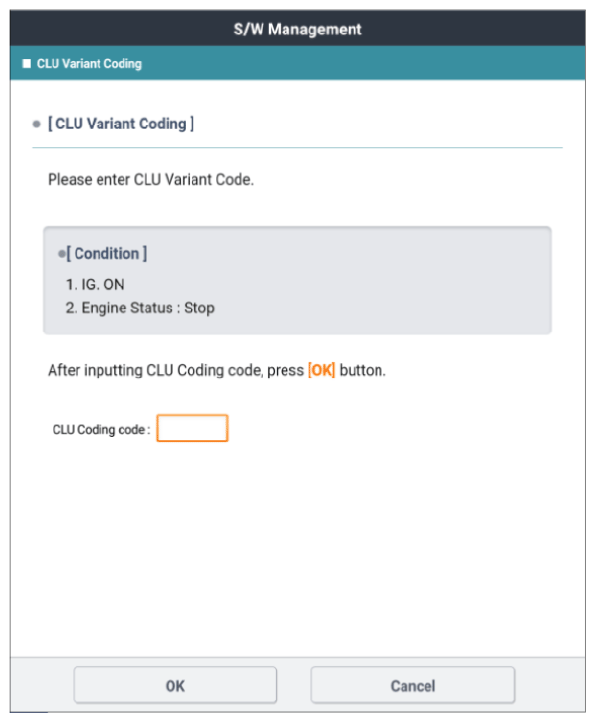

    G13394274Courtesy of KIA MOTORS AMERICA, INC.

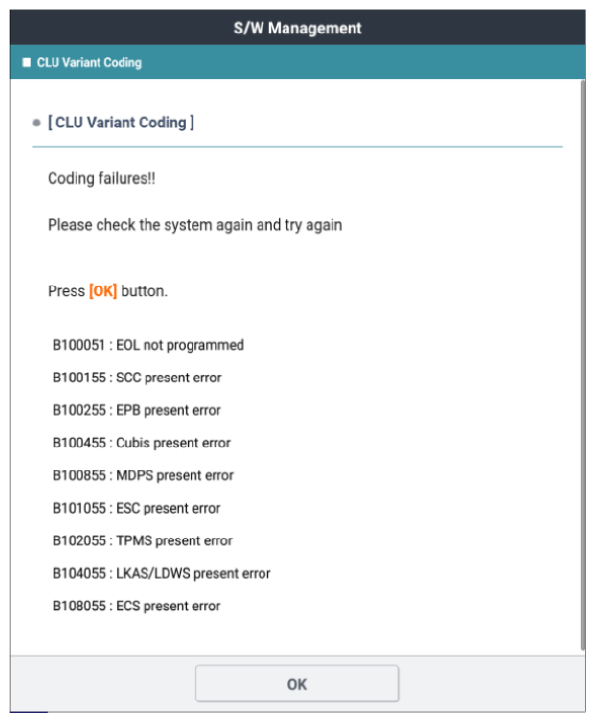

    G13394275Courtesy of KIA MOTORS AMERICA, INC.
  4. Is the DTCs stored in the system as a present?

    YES

    • Replace cluster module and perform "CLU Variant Coding" procedure in the "Vehicle S/W Management" with KDS again, and then, go to "VERIFICATION OF VEHICLE REPAIR " procedure.

    NO
