Cluster module variant coding

WARNING: This page is about a different variant/trim than selected.
  1. Verify vehicle options and have VIN code in hand.
  2. Perform "CLU Variant Coding" in the "Vehicle S/W Management" with KDS.
  3. Check for DTCs in the system.

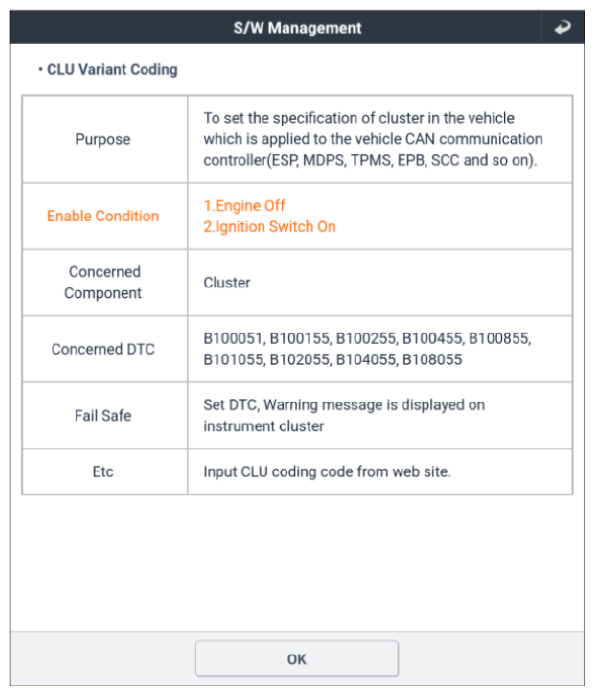

    G13394248Courtesy of KIA MOTORS AMERICA, INC.

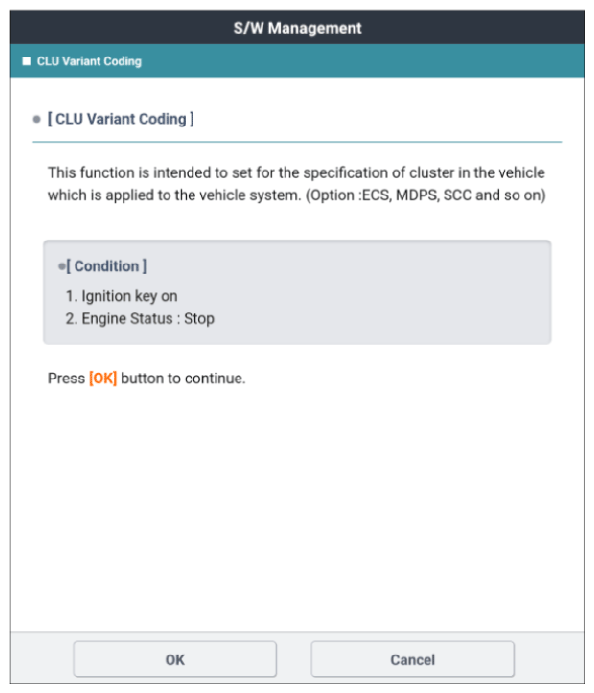

    G13394249Courtesy of KIA MOTORS AMERICA, INC.

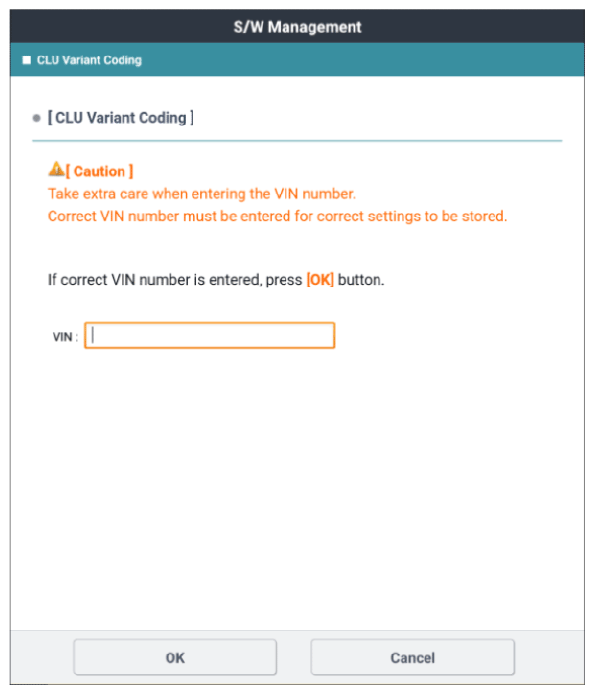

    G13394250Courtesy of KIA MOTORS AMERICA, INC.
    G13394251Courtesy of KIA MOTORS AMERICA, INC.

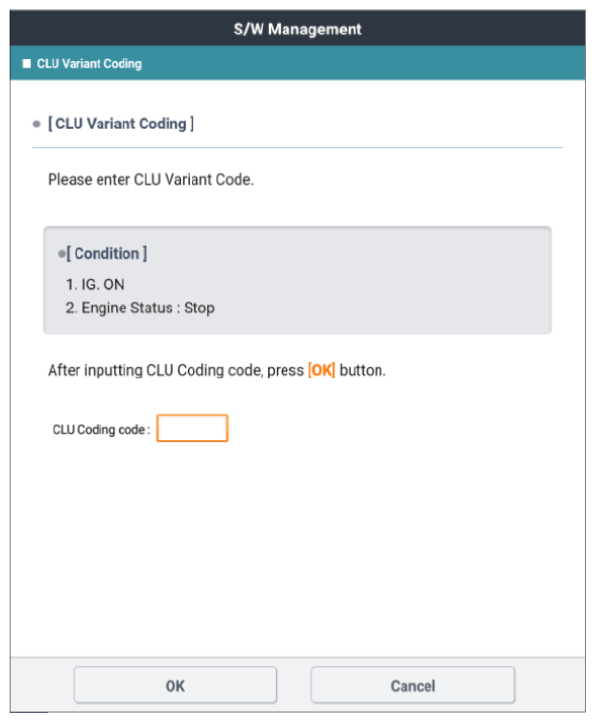

    G13394252Courtesy of KIA MOTORS AMERICA, INC.

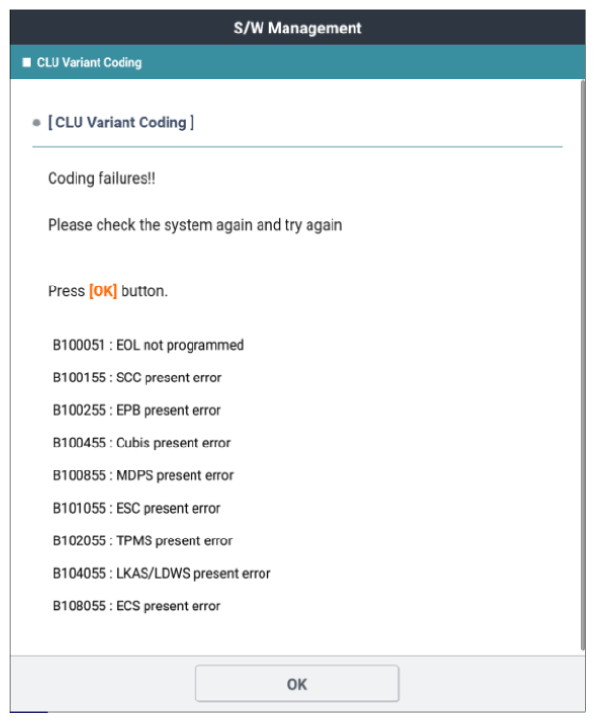

    G13394253Courtesy of KIA MOTORS AMERICA, INC.
  4. Is the DTCs stored in the system as a present?

    YES

    • Replace cluster module and perform "CLU Variant Coding" procedure in the "Vehicle S/W Management" with KDS again, and then, go to "VERIFICATION OF VEHICLE REPAIR " procedure.

    NO
