Cluster module variant coding

WARNING: This page is about a different variant/trim than selected.
  1. Verify vehicle options and have VIN code in hand.
  2. Perform "CLU Variant Coding" in the "Vehicle S/W Management" with KDS.
  3. Check for DTCs in the system.

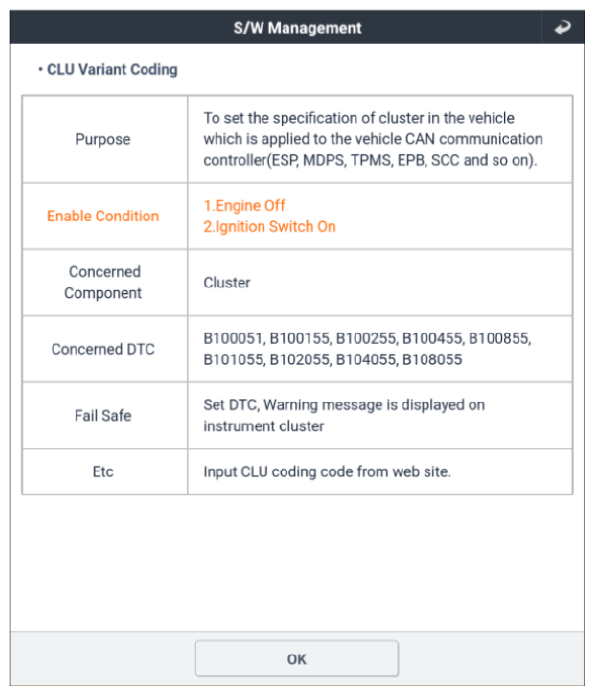

    G13394226Courtesy of KIA MOTORS AMERICA, INC.

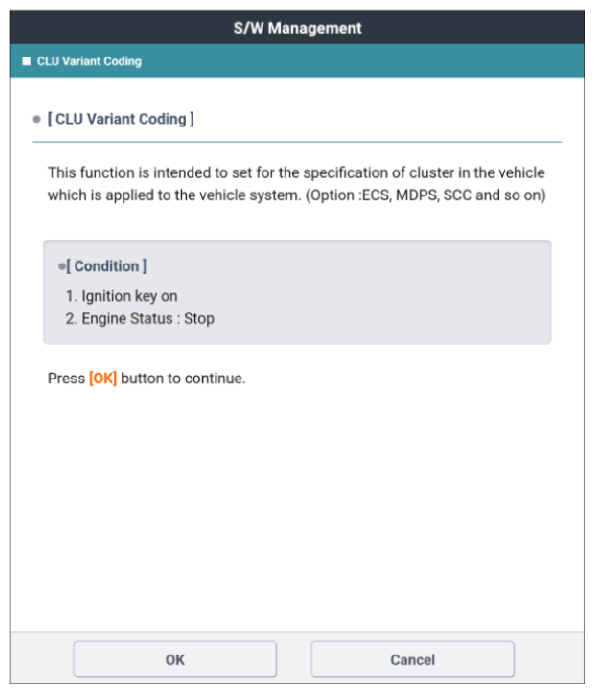

    G13394227Courtesy of KIA MOTORS AMERICA, INC.

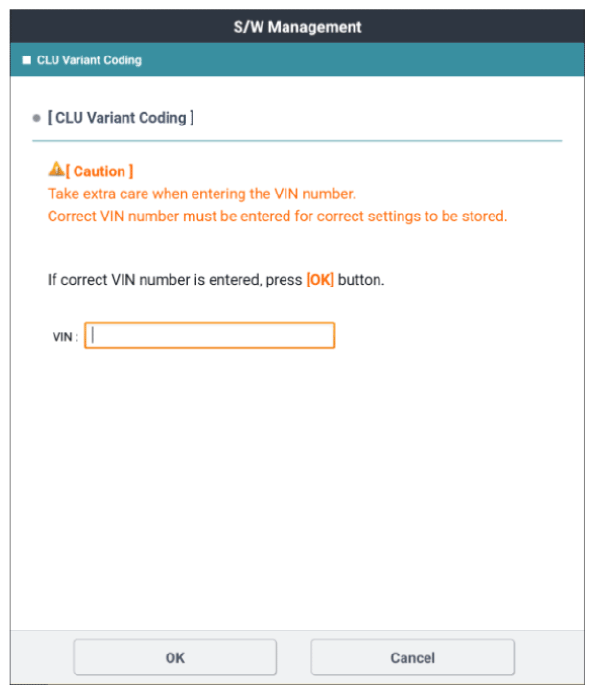

    G13394228Courtesy of KIA MOTORS AMERICA, INC.
    G13394229Courtesy of KIA MOTORS AMERICA, INC.

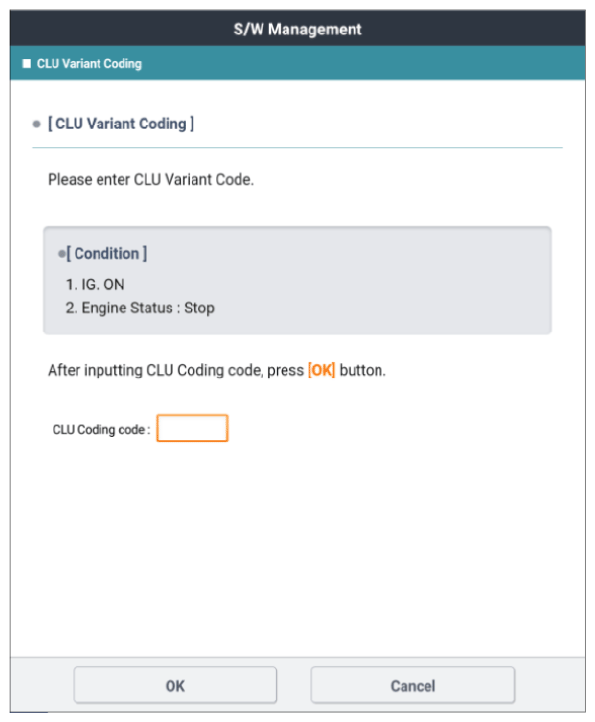

    G13394230Courtesy of KIA MOTORS AMERICA, INC.

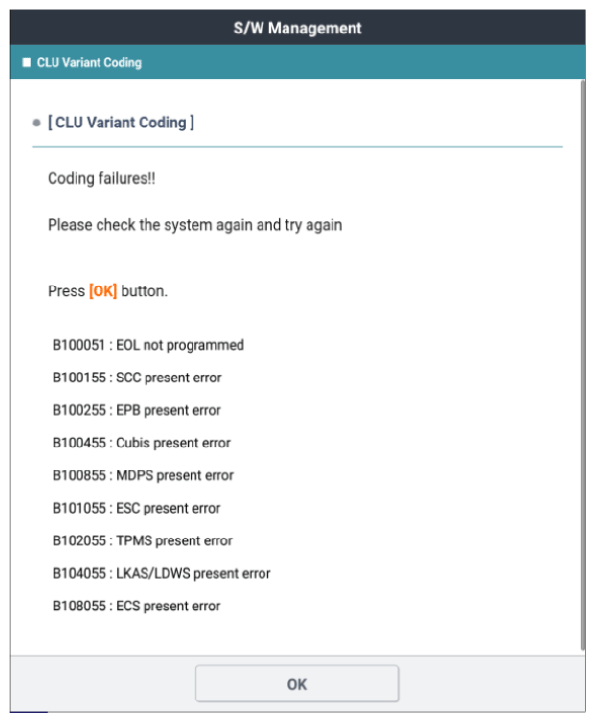

    G13394231Courtesy of KIA MOTORS AMERICA, INC.
  4. Is the DTCs stored in the system as a present?

    YES

    • Replace cluster module and perform "CLU Variant Coding" procedure in the "Vehicle S/W Management" with KDS again, and then, go to "VERIFICATION OF VEHICLE REPAIR " procedure.

    NO
