Cluster module variant coding

WARNING: This page is about a different variant/trim than selected.
  1. Verify vehicle options and have VIN code in hand.
  2. Perform "CLU Variant Coding" in the "Vehicle S/W Management" with KDS.
  3. Check for DTCs in the system.
    G13394160Courtesy of KIA MOTORS AMERICA, INC.

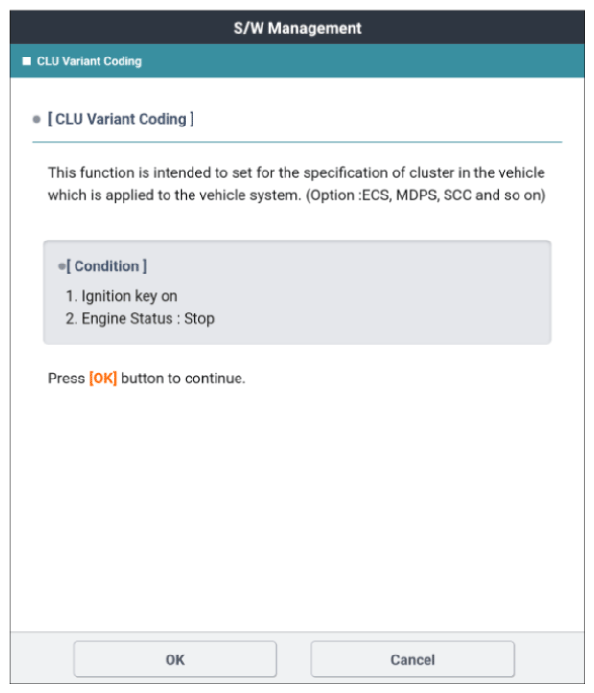

    G13394161Courtesy of KIA MOTORS AMERICA, INC.

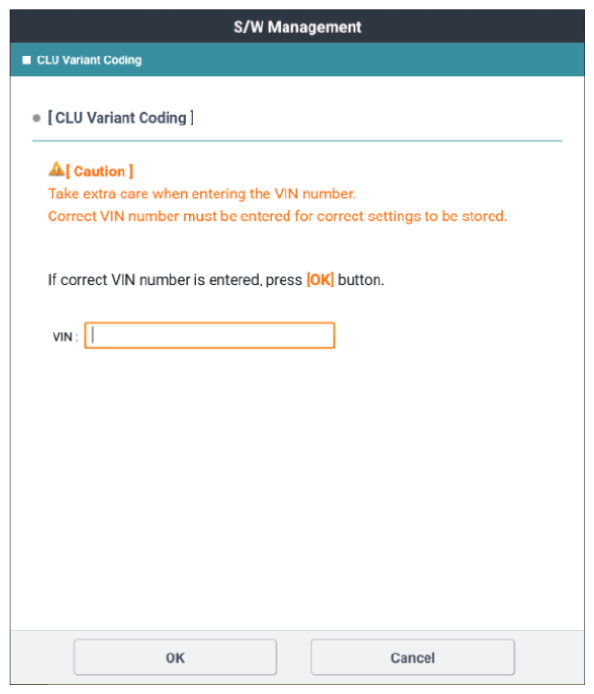

    G13394162Courtesy of KIA MOTORS AMERICA, INC.

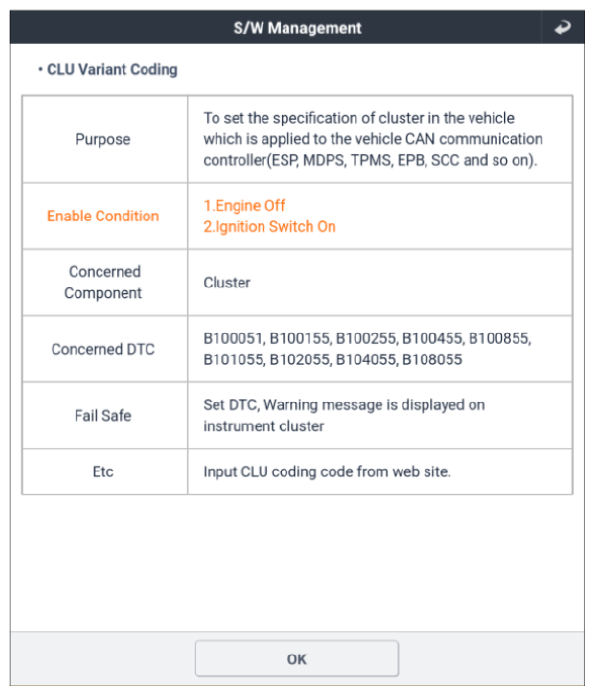

    G13394163Courtesy of KIA MOTORS AMERICA, INC.

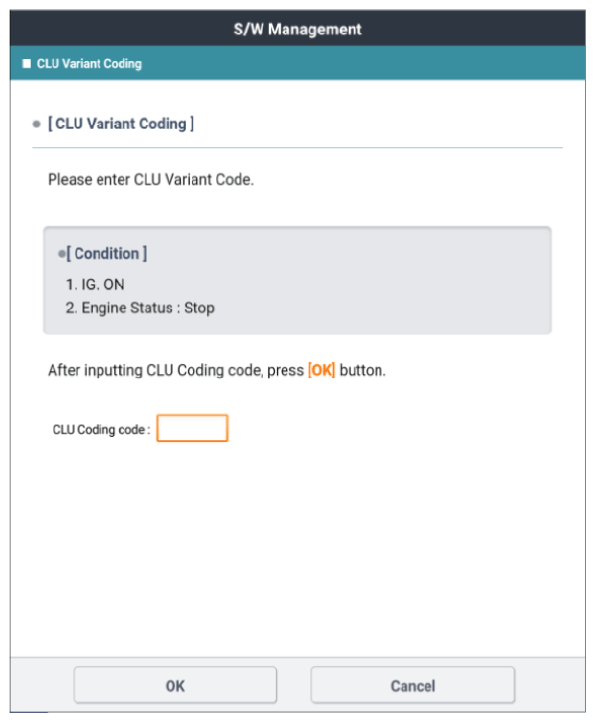

    G13394164Courtesy of KIA MOTORS AMERICA, INC.

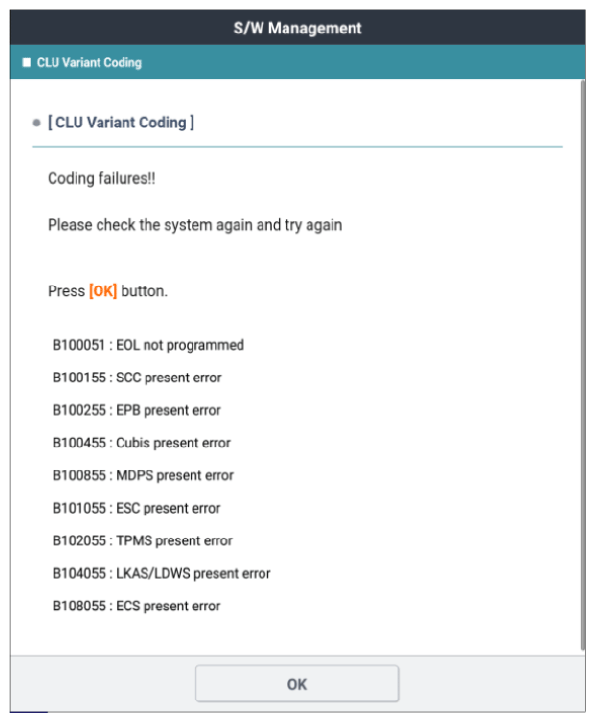

    G13394165Courtesy of KIA MOTORS AMERICA, INC.
  4. Is the DTCs stored in the system as a present?

    YES

    • Replace cluster module and perform "CLU Variant Coding" procedure in the "Vehicle S/W Management" with KDS again, and then, go to "VERIFICATION OF VEHICLE REPAIR " procedure.

    NO
