LIN Communication Line Inspection

WARNING: This page is about a different variant/trim than selected.

Ignition "OFF".
Refer to "PARKING ASSIST SENSOR " and remove necessary parts to get access to Rear Left Sensor connector.
Ignition "ON".
Back probe and measure signal waveform between Pin No. 5 (LIN) terminal of Rear Left Sensor harness connector and chassis ground.

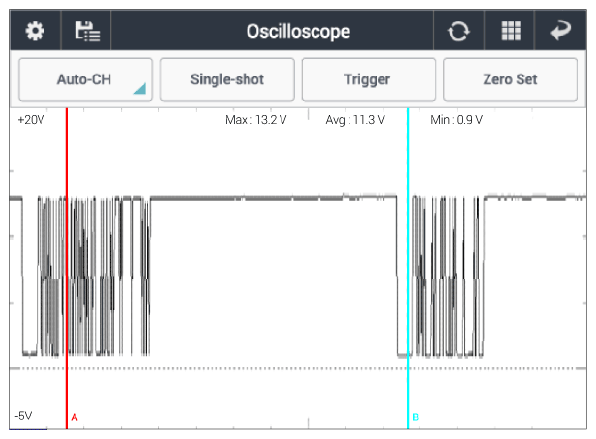

Specification: Refer to Figure below

Courtesy of KIA MOTORS AMERICA, INC.
Is the measured value within specification?
YES
- Go to "COMPONENT INSPECTION " procedure.
NO
- If the voltage of measured signal waveform is the battery voltage level (about 12V),
  → Check for short to battery in the LIN line.

  → Check for open/poor connection in the LIN line.
- If the voltage of measured signal waveform is the ground voltage level (about 0V),
  → Check for short to ground the LIN line.
- Repair or replace as necessary, go to "VERIFICATION OF VEHICLE REPAIR " procedure.
