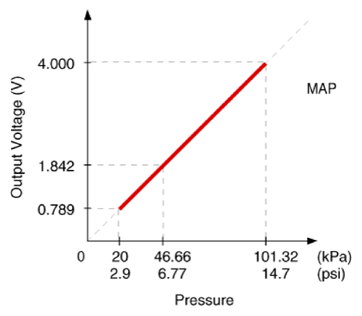

Manifold Absolute Pressure Sensor (MAPS): Specifications: Specification
WARNING: This page is about a different variant/trim than selected.
Pressure
[kPa (kgf/cm2
, psi)] |
Output Voltage (V) |
| 20.0 (0.20, 2.9) |
0.79 |
| 46.7 (0.47, 6.77) |
1.84 |
| 101.3 (1.03, 14.7) |
4.0 |
 Courtesy of KIA MOTORS AMERICA, INC.
|
