Component Inspection: Notes
Throttle Position Sensor Inspection
- Ignition "OFF"
- Connect KDS to Data Link Connector(DLC).
- Ignition "ON" & Engine "ON"
- Warm up the engine to normal operating temperature.

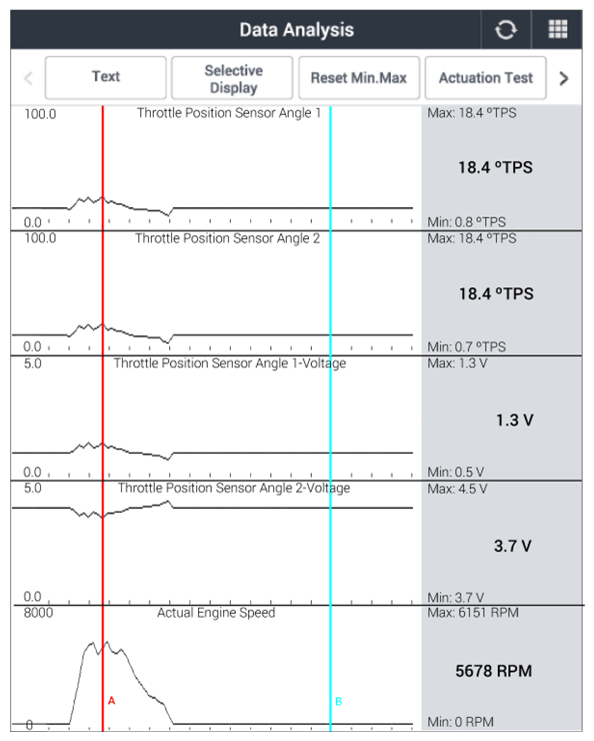

- Monitor following parameters in "Current Data" with KDS.
Specification: Check the changes in the Throttle Position Sensor 1, 2 during acceleration
- Is measured value within specification?
YES
- Go to "SYSTEM INSPECTION " procedure.
NO
- Carefully re-do this troubleshooting guide steps.
- If no problems were found with the circuits or connectors, Throttle Body and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
CAUTION:
- Install the component with the specified torques.
- Note that internal damage may occur when the component is dropped or mis- treated.
