Repair Procedures: Removal

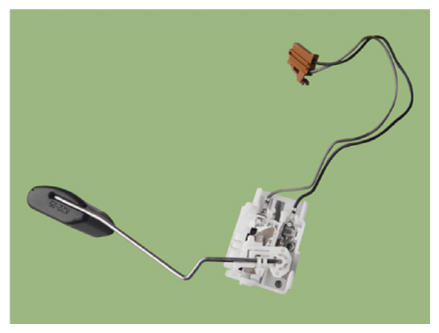

G13361825Courtesy of KIA MOTORS AMERICA, INC.
  1. Remove the fuel pump.

    (Refer to Fuel Delivery System - "FUEL PUMP ")

  2. Disconnect the fuel sender connector (A).

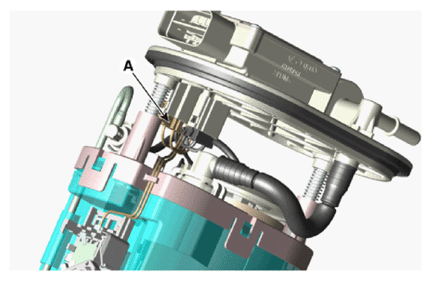

    G13361826Courtesy of KIA MOTORS AMERICA, INC.
  3. Remove the fuel sender (A) after releasing the fix hook.

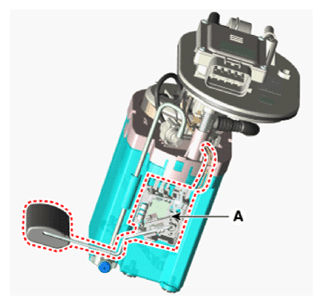

    G13361827Courtesy of KIA MOTORS AMERICA, INC.
