Repair Procedures: Removal

  1. Remove the fuel pump.

    (Refer to Fuel Delivery System - "FUEL PUMP ")

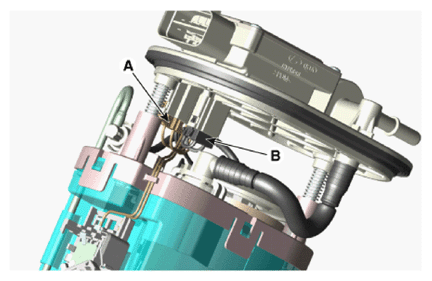

  2. Remove the fuel pump motor connector (A) and fuel sender connector (B).
    G13361817Courtesy of KIA MOTORS AMERICA, INC.

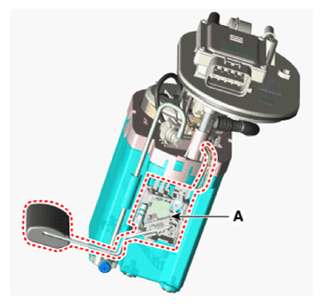

  3. Lift the fixing hook by using a common driver, and then remove the fuel sender (A).
    G13361818Courtesy of KIA MOTORS AMERICA, INC.
  4. Remove the reservoir cup (B) after releasing the fixing hooks (A).
    G13361819Courtesy of KIA MOTORS AMERICA, INC.

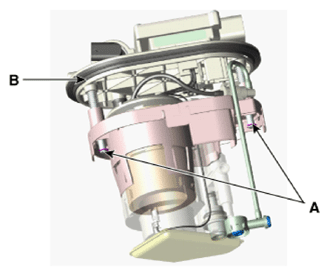

  5. Remove the head assembly (B) after releasing the fixing hooks (A).
    G13361820Courtesy of KIA MOTORS AMERICA, INC.

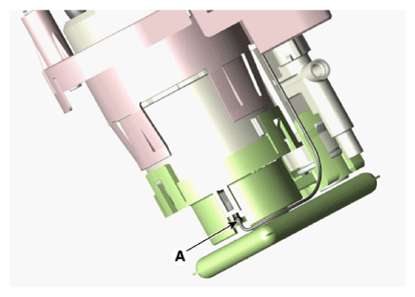

  6. Disconnect the ground cable (A).
    G13361821Courtesy of KIA MOTORS AMERICA, INC.

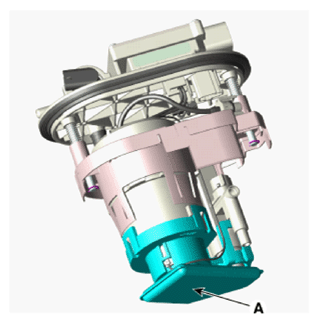

  7. Remove the free-filter (A) after releasing the fixing hooks.
    G13361822Courtesy of KIA MOTORS AMERICA, INC.

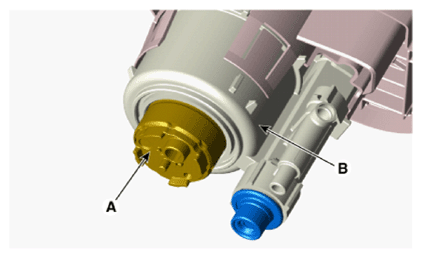

  8. Remove the fuel pump motor (A) from the fuel filter (B).
    G13361823Courtesy of KIA MOTORS AMERICA, INC.
