Repair Procedures: Removal

  1. Remove the fuel pump.

    (Refer to Fuel Delivery System - "FUEL PUMP ")

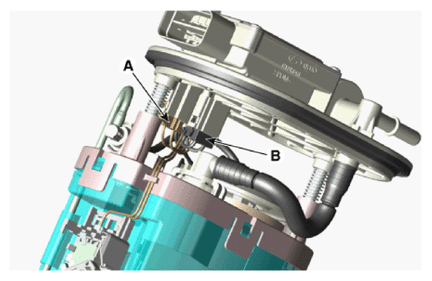

  2. Remove the fuel pump motor connector (A) and fuel sender connector (B).
    G13361828Courtesy of KIA MOTORS AMERICA, INC.

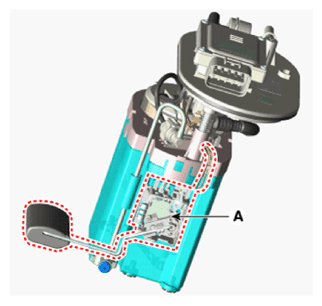

  3. Lift the fixing hook by using a common driver, and then remove the fuel sender (A).
    G13361829Courtesy of KIA MOTORS AMERICA, INC.

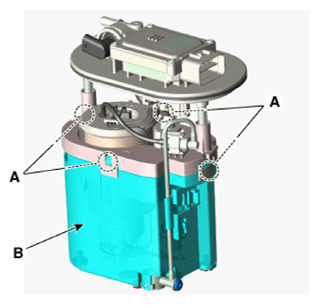

  4. Remove the reservoir cup (B) after releasing the fixing hooks (A).
    G13361830Courtesy of KIA MOTORS AMERICA, INC.

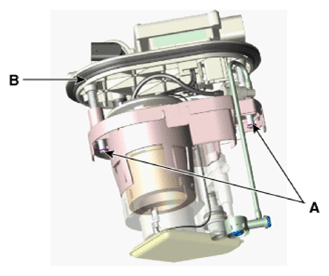

  5. Remove the head assembly (B) after releasing the fixing hooks (A).
    G13361831Courtesy of KIA MOTORS AMERICA, INC.

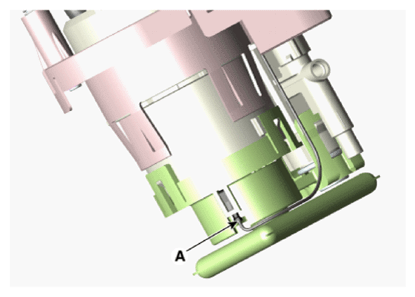

  6. Disconnect the ground cable (A).
    G13361832Courtesy of KIA MOTORS AMERICA, INC.

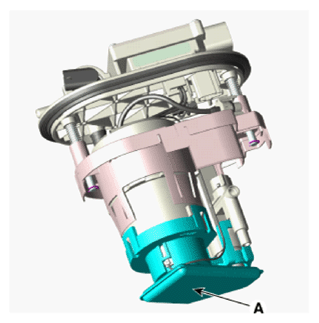

  7. Remove the free-filter (A) after releasing the fixing hooks.
    G13361833Courtesy of KIA MOTORS AMERICA, INC.

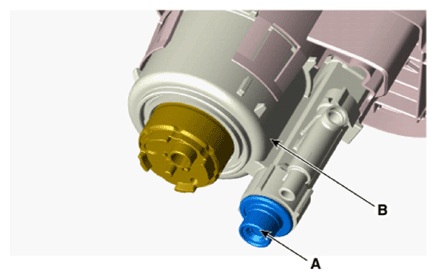

  8. Remove the fuel pressure regulator (A) from the fuel filter (B).
    G13361834Courtesy of KIA MOTORS AMERICA, INC.
