Throttle Position Sensor (TPS) [integrated into ETC module]

• Type: Hall IC Non-contact sensor type
• Specification

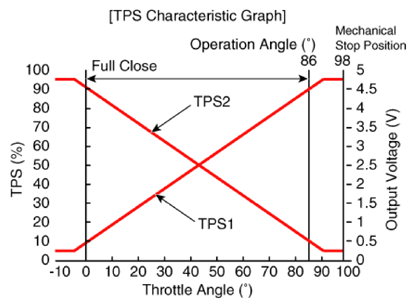

Throttle angle(°)	Output Voltage (V) [Vref=5V]
	TPS1	TPS2
0	0.5	4.5
10	0.96	4.05
20	1.41	3.59
30	1.87	3.14
40	2.32	2.68
50	2.78	2.23
60	3.23	1.77
70	3.69	1.32
80	4.14	0.86
90	4.6	0.41
98	4.65	0.35
C.T (0)	0.5	4.5
W.O.T (86)	4.41	0.59
