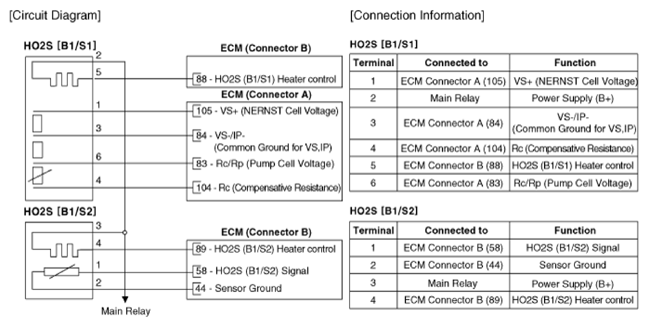

Home >> Kia >> 2020 >> Optima Plug-In Hybrid EX >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System (PHEV) >> Heated Oxygen Sensor (HO2S) >> Schematic Diagrams >> Circuit Diagram >> Notes
