Home >> Kia >> 2020 >> Optima Plug-In Hybrid EX >> Repair and Diagnosis >> Engine Mechanical >> Cooling Fan >> Engine Cooling System (PHEV) >> Components & Components Location >> Components

Components & Components Location: Components

G13360977

Courtesy of KIA MOTORS AMERICA, INC.

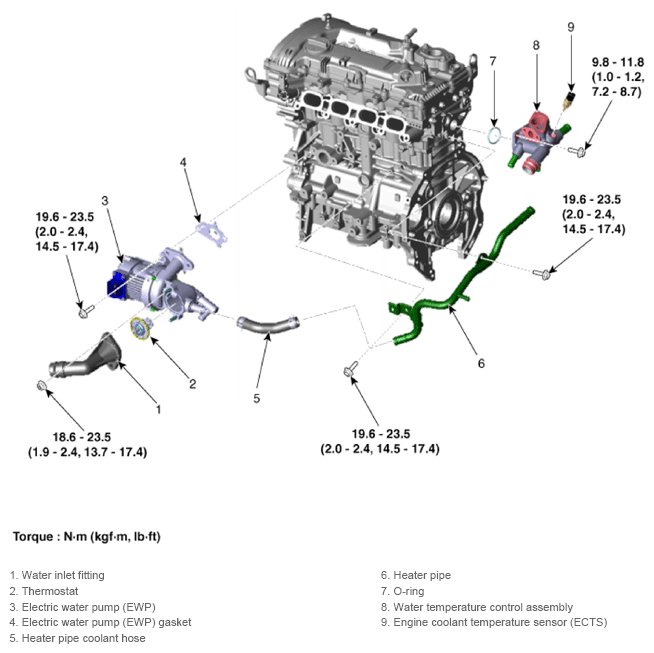

Fig 1: Cooling System Components With Torque Specification

G13360978

Courtesy of KIA MOTORS AMERICA, INC.
