Rear Power Window Switch

  1. Disconnect the negative (-) battery terminal.
  2. Remove the rear door trim.

    (Refer to Body - "REAR DOOR TRIM ")

  3. Loosen the power window switch assembly mounting screws.

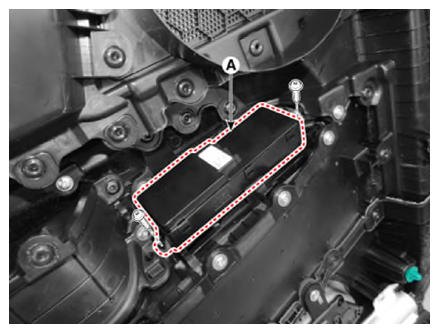

  4. Remove the power window switch assembly (A) after disengaging the mounting clips.
    G13364362Courtesy of KIA MOTORS AMERICA, INC.

    Information

    • Replace any damaged clips.

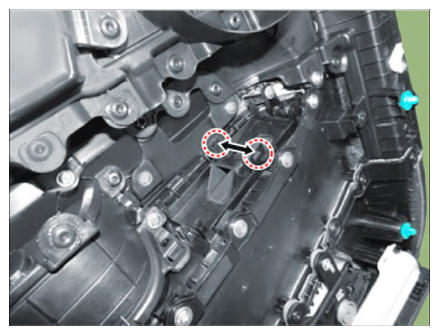

    G13364363Courtesy of KIA MOTORS AMERICA, INC.
