Rear Power Window Motor

Disconnect the negative (-) battery terminal.
Remove the rear door trim.
(Refer to Body - "REAR DOOR TRIM ")

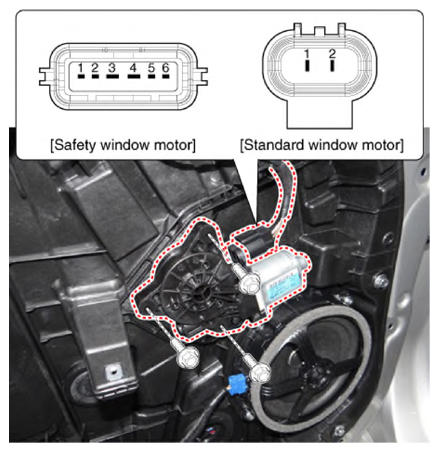

Disconnect the motor connector from the motor.

Courtesy of KIA MOTORS AMERICA, INC.

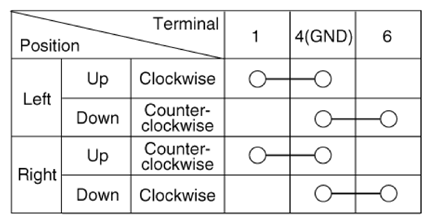

Connect the terminals No. 2 and No. 3 to battery voltage (12V) and check that the motor operates smoothly when connecting the terminals below.
[Safety window motor]

Courtesy of KIA MOTORS AMERICA, INC.

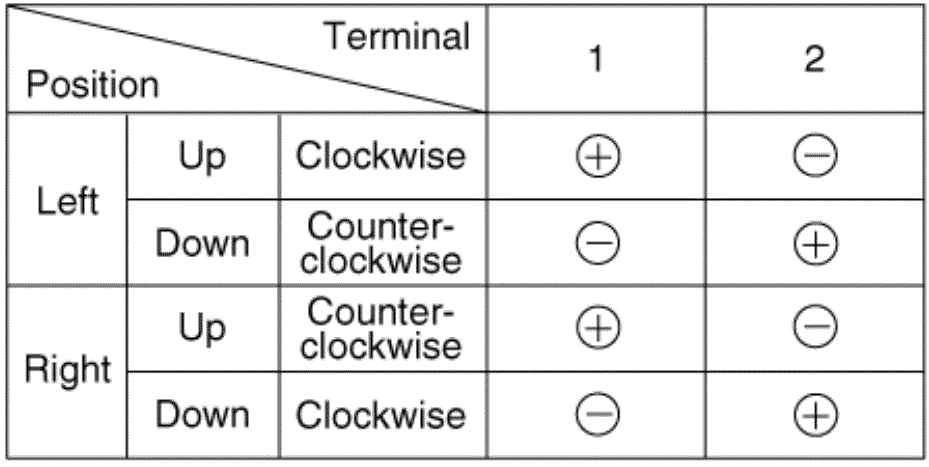

Connect the motor terminals No. 1 and No. 2 directly to battery voltage (12V) and check that the motor operates smoothly.
If the operation is abnormal, replace the motor.

[Standard window motor]

Courtesy of KIA MOTORS AMERICA, INC.
