Repair Procedures: Replacement

NOTE:
  • Be careful as the seat back may touch peripheral components such as the sun visor if it is folded forward with its headrest and seat adjusted high and the seat moved forward.
  1. After loosening the mounting bolts, remove the front seat assembly.

    Tightening torque:

    49.0 - 63.7 N.m (5.0 - 6.5 kgf.m, 36.2- 47.0 lb.ft)

    [Front]

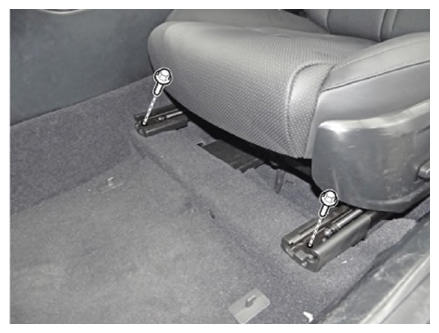

    G13363242Courtesy of KIA MOTORS AMERICA, INC.

    [Rear]

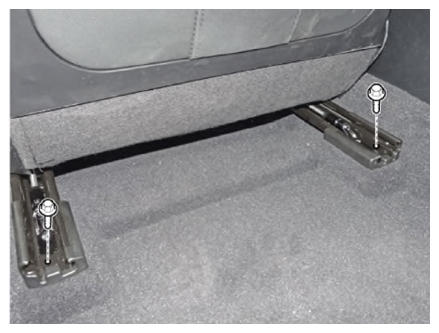

    G13363243Courtesy of KIA MOTORS AMERICA, INC.
  2. Disconnect the main connector (A), side airbag connector (B), and front seat belt buckle connector (C).

    [Driver Side]

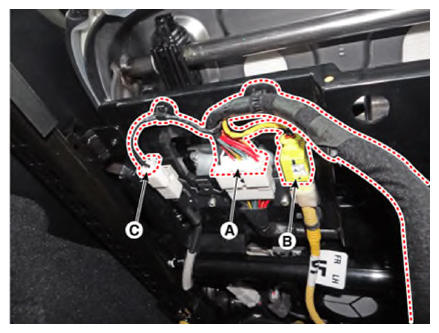

    G13363244Courtesy of KIA MOTORS AMERICA, INC.

    [Passenger Side]

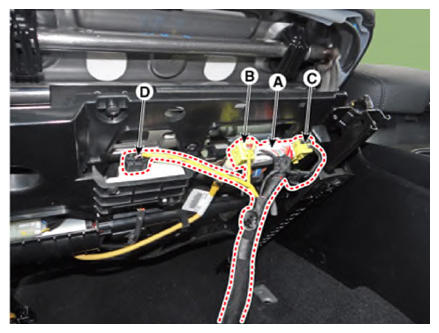

    G13363245Courtesy of KIA MOTORS AMERICA, INC.
  3. Install in the reverse order of removal.

    Information

    SEAT MOUNTING BOLT INSTALLATION PROCEDURE

    • Set the seat into its rearmost position. Check that each slide is locked, and then tighten the front mounting bolt temporarily.
    • Set the seat into its foremost position. Check that each slide is locked, and then tighten the rear mounting bolt completely.
    • Set the seat into its rearmost position. Tighten the front mounting bolt completely.
    • Check that the seat operates to and fro smoothy and the locking portion locks properly.
