Repair Procedures: Replacement

CAUTION: Put on gloves to protect your hands.

NOTE:

When prying with a flat-tip screwdriver or using a prying trim tool, wrap it with protective tape, and apply protective tape around the related parts to prevent damage.
Be careful not to scratch the body surface.

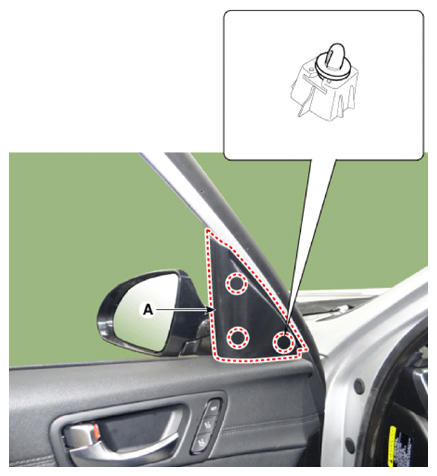

After loosening the mounting clips, remove the front door quadrant inner cover (A).

Courtesy of KIA MOTORS AMERICA, INC.

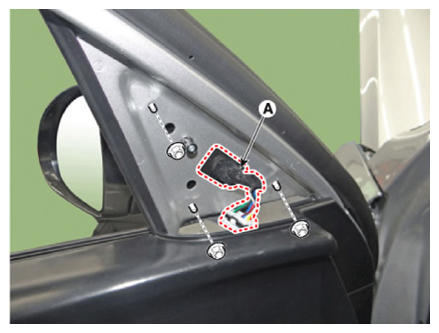

Loosen the mounting nuts and disconnect the outside rear view mirror connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

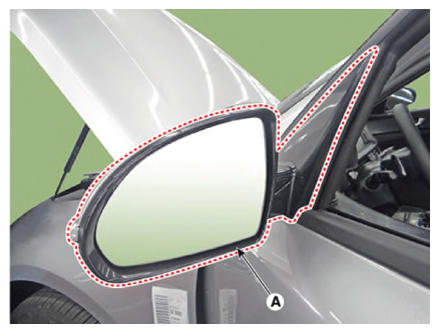

Remove the outside rear view mirror (A).

Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
Information
- Make sure that the connector is connected properly.
- Replace any damaged clips.
