Repair procedures: Inspection

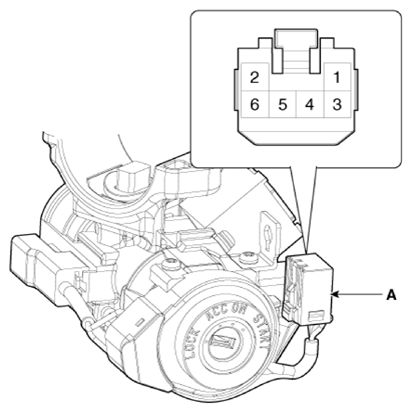

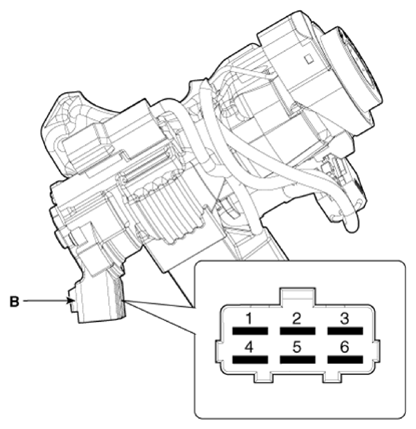

  1. Disconnect the ignition switch connector (A) and key warning switch connector (B) from under the steering column.
    G13364007Courtesy of KIA MOTORS AMERICA, INC.
    G13364008Courtesy of KIA MOTORS AMERICA, INC.

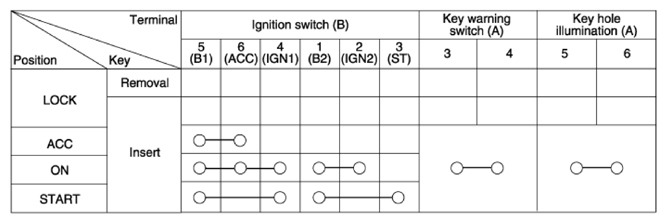

  2. Check for continuity between the terminals.
  3. If continuity is not as specified, replace the switch.
G13364009Courtesy of KIA MOTORS AMERICA, INC.
