LEMON Manuals
: Even more car manuals for everyone
Home
>>
Kia
>>
2020
>>
Optima Plug-In Hybrid EX
>>
Repair and Diagnosis
>>
Body & Frame
>>
Door Locks
>>
Smart Key System (PHEV)
>>
Smart Key Unit
>>
Schematic Diagrams
>>

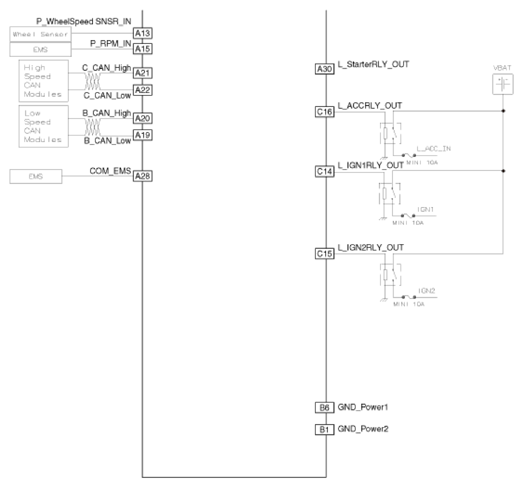

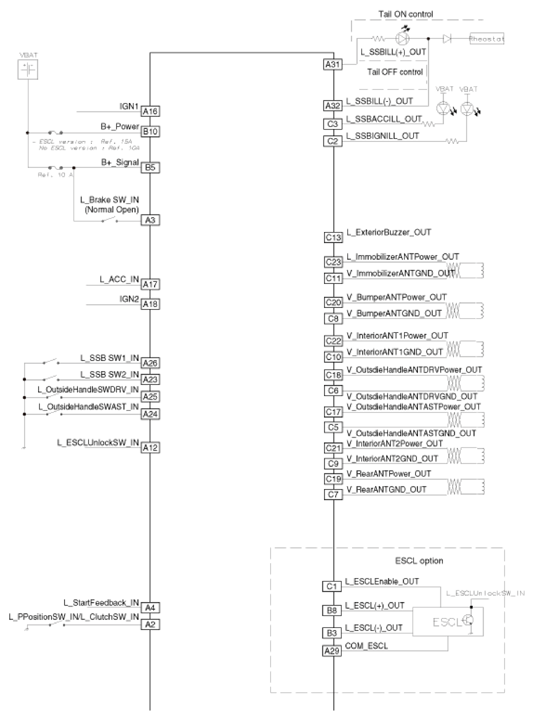

Circuit Diagram
Circuit Diagram
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
