FOB Status Check

  1. Connect the cable of KDS to the data link connector in driver side crash pad lower panel.
  2. After IG ON, select the "FOB KEY STATUS INFO".

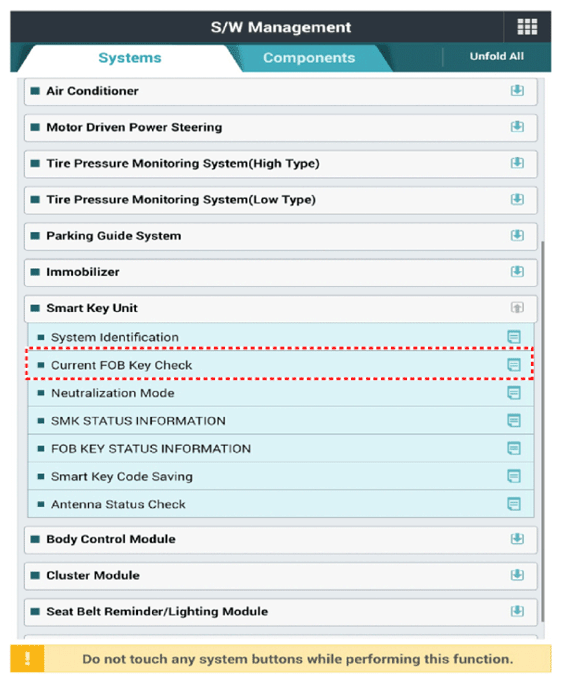

    G13364509Courtesy of KIA MOTORS AMERICA, INC.

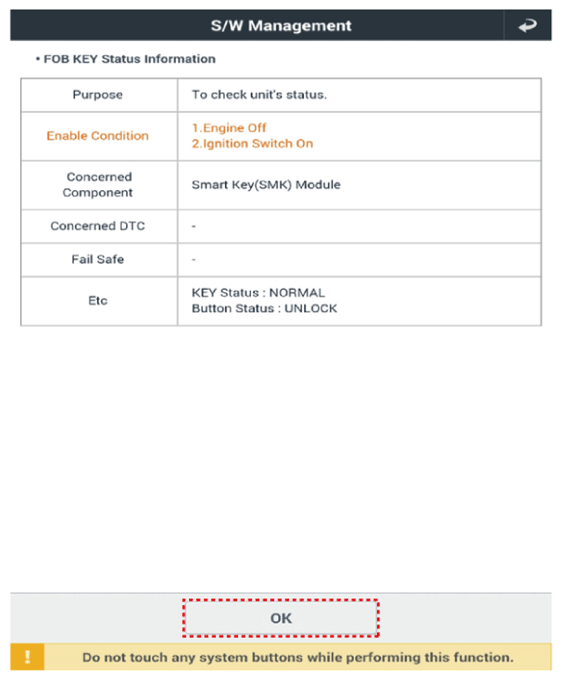

    G13364510Courtesy of KIA MOTORS AMERICA, INC.

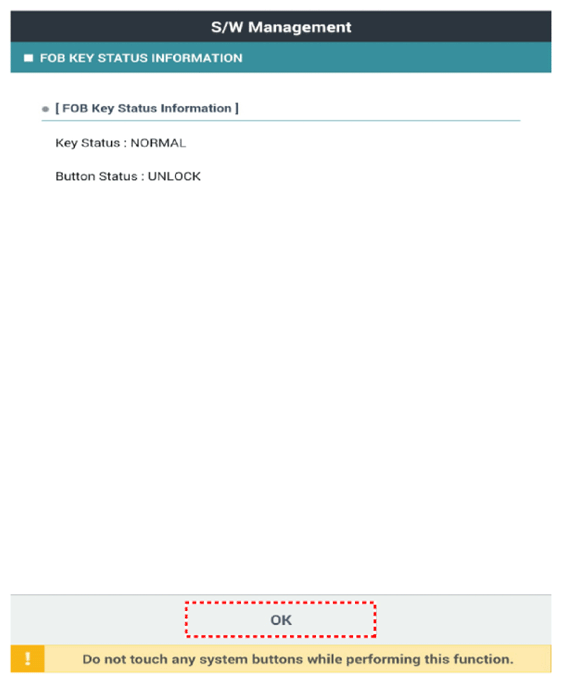

    G13364511Courtesy of KIA MOTORS AMERICA, INC.
