Repair Procedures: Removal

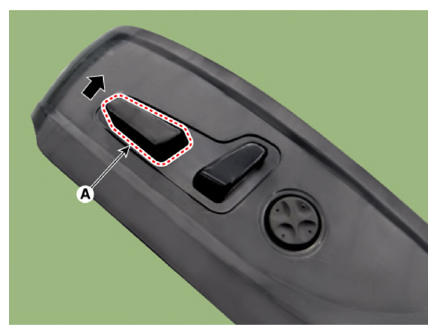

  1. Before removing the driver side seat assembly, adjust to the full upwards position, by pushing the front height adjusting switch (A).
    G13364107Courtesy of KIA MOTORS AMERICA, INC.
  2. Disconnect the negative (-) battery terminal
  3. Remove the driver seat assembly.

    (Refer to Body - "FRONT SEAT ASSEMBLY ")

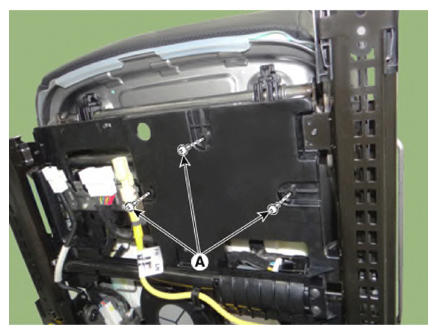

  4. Loosen the IMS unit mounting screws.
    G13364108Courtesy of KIA MOTORS AMERICA, INC.

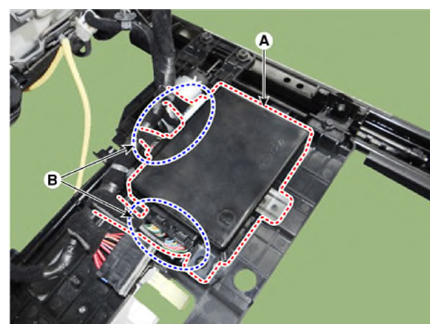

  5. Disconnect the IMS module connectors (B) and then remove the IMS unit (A).
G13364109Courtesy of KIA MOTORS AMERICA, INC.
