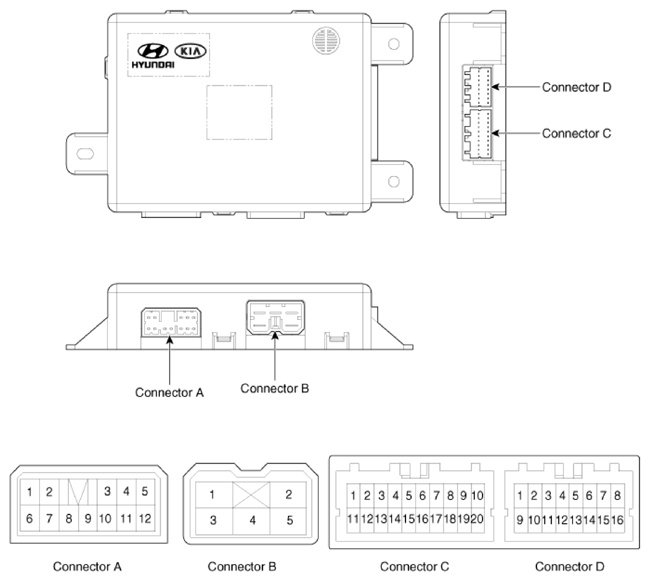

| 1 |
- |
Batt (+) |
- |
- |
| 2 |
Front tilt motor (Up) |
GND |
- |
Seat rear height sensor |
| 3 |
Rear height motor (Up) |
Batt (+) |
Slide switch signal (Forward) |
- |
| 4 |
Reclining motor (Forward) |
- |
Reclining switch signal (Forward) |
Body CAN (High) |
| 5 |
Slide motor (Forward) |
GND |
Front tilt switch signal (Up) |
Body CAN (Low) |
| 6 |
- |
|
Rear height switch signal (Up) |
- |
| 7 |
Front tilt motor (Down) |
Slide sensor |
IGN1 |
| 8 |
- |
Reclining sensor |
Batt (+) |
| 9 |
- |
Front tilt sensor |
GND |
| 10 |
Rear height motor (Down) |
Seat position sensor power |
- |
| 11 |
Reclining motor (Backward) |
- |
IMS Switch 1 |
| 12 |
Slide motor (Backward) |
- |
IMS Switch 2 |
| 13 |
|
Slide switch signal (Backward) |
- |
| 14 |
Reclining switch signal (Backward) |
SET Switch |
| 15 |
Front tilt switch signal (Down) |
- |
| 16 |
Rear height switch signal (Down) |
- |
| 17 |
- |
|
| 18 |
- |
| 19 |
- |
| 20 |
- |
