Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the smart key unit.

    (Refer to Smart Key System - "SMART KEY UNIT ")

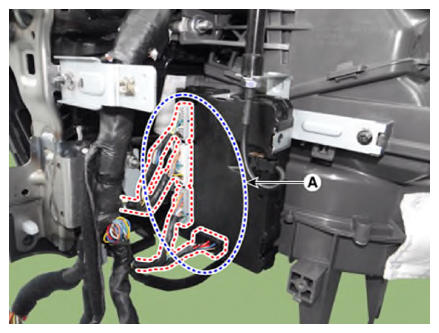

  3. Disconnect the body control module connectors (A).
    G13363893Courtesy of KIA MOTORS AMERICA, INC.

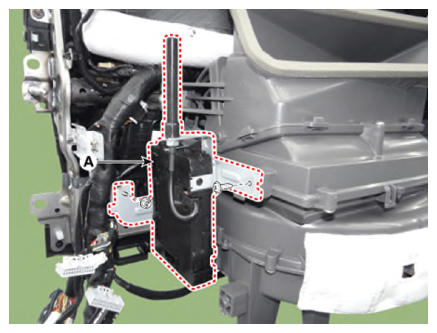

  4. Remove the body control module (A) after loosening the mounting nut and screw.
G13363894Courtesy of KIA MOTORS AMERICA, INC.
