Repair Procedures: Removal

  1. Shift the gear to "N".
  2. Remove the air cleaner assembly and air duct.

    (Refer to Engine Mechanical System - "AIR CLEANER ")

  3. Remove the battery and battery tray.

    (Refer to Engine Electrical System - "BATTERY ")

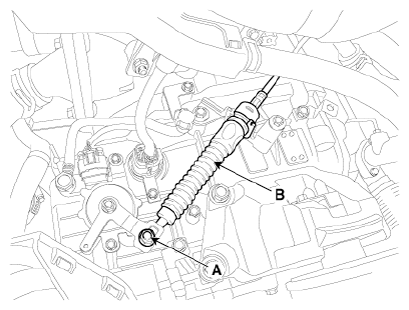

  4. Remove the shift cable (B) from the bracket after loosening a nut (A).
    G12933105Courtesy of KIA MOTORS AMERICA, INC.

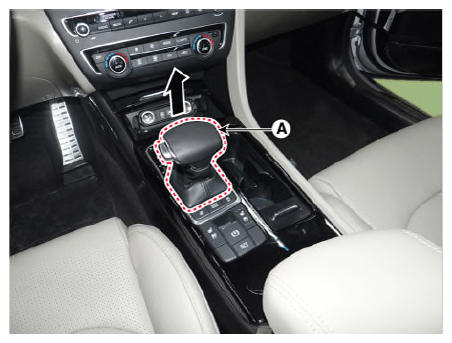

  5. Remove the knob & boots (A) by pulling it in the direction of arrow after removing the boots from the console upper cover.
    G12933106Courtesy of KIA MOTORS AMERICA, INC.
  6. Remove the floor console assembly.

    (Refer to Body "FLOOR CONSOLE ")

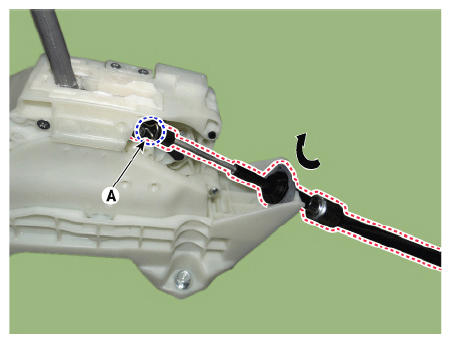

  7. Remove the shift cable after separating the snap pin (A).
    G12933107Courtesy of KIA MOTORS AMERICA, INC.

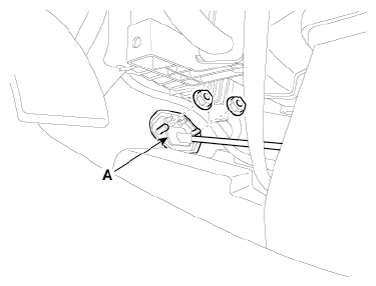

  8. Remove the shift cable retainer (A) after loosening the nuts. Then, remove the shift cable by pulling it toward the vehicle interior.
G12933108Courtesy of KIA MOTORS AMERICA, INC.
