Repair Procedures: Inspection

  1. Switch "OFF" ignition.
  2. Remove the battery and battery tray.

    (Refer to Engine Electrical System - "BATTERY ")

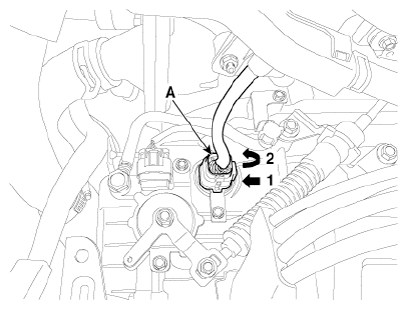

  3. Disconnect the solenoid valve connector (A).
    G12933047Courtesy of KIA MOTORS AMERICA, INC.
  4. Measure the resistance between power terminal (5) and signal terminal (17).

    Specification:  5.1 ± 0.3 Ω

    G12933048Courtesy of KIA MOTORS AMERICA, INC.
