Repair Procedures: Removal

  1. Shift the gear to "N".
  2. Remove the battery and battery tray.

    (Refer to Engine Electrical System - "BATTERY ")

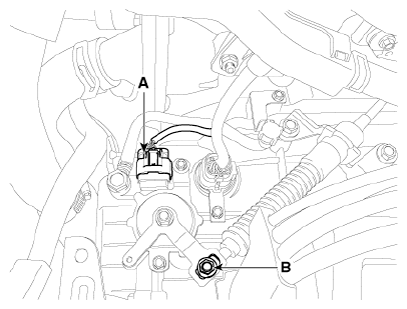

  3. Disconnect the inhibitor switch connector (A) and loosen the shift cable mounting nut (B).
    G12933088Courtesy of KIA MOTORS AMERICA, INC.

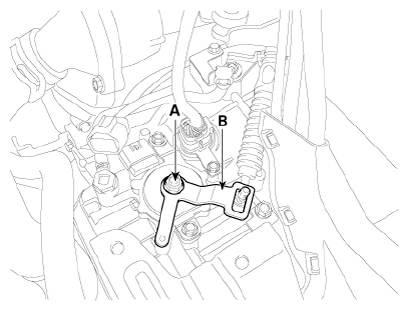

  4. Remove the manual control lever (B) and the washer after removing a nut (A).
    G12933089Courtesy of KIA MOTORS AMERICA, INC.

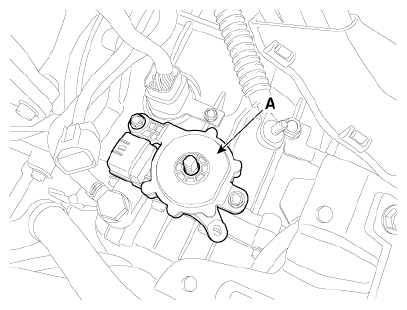

  5. Remove the inhibitor switch (A) after loosening the bolts.
G12933090Courtesy of KIA MOTORS AMERICA, INC.
