Circuit Diagram

WARNING: This page is about a different car, the 2020 Hyundai Kona. However, it is still accessible from the selected car via links, so may be relevant.

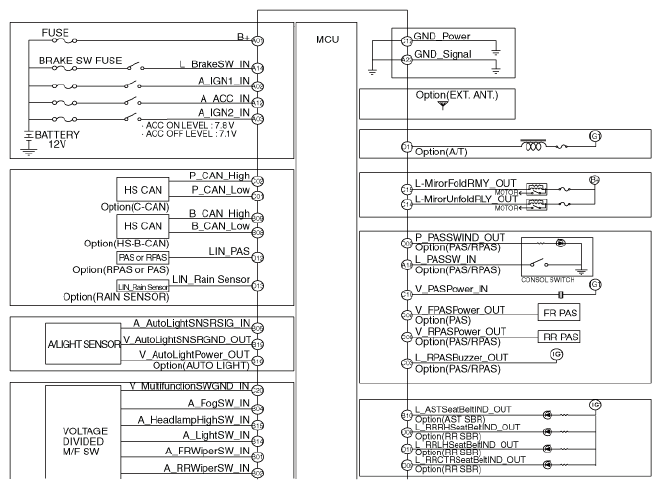

G12605573Courtesy of HYUNDAI MOTOR AMERICA

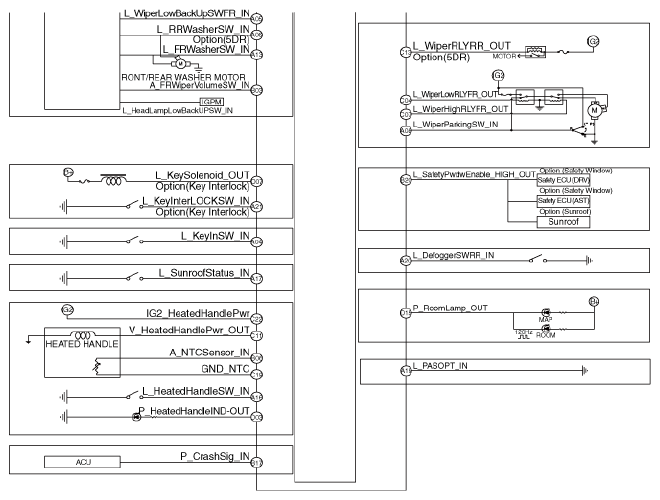

G12605574Courtesy of HYUNDAI MOTOR AMERICA
