Vehicle S/W Management

WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.
Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "VEHICLE S/W MANAGEMENT " of concerned component with KDS.
Fig.1 to 5
G13484997Courtesy of KIA MOTORS AMERICA, INC.

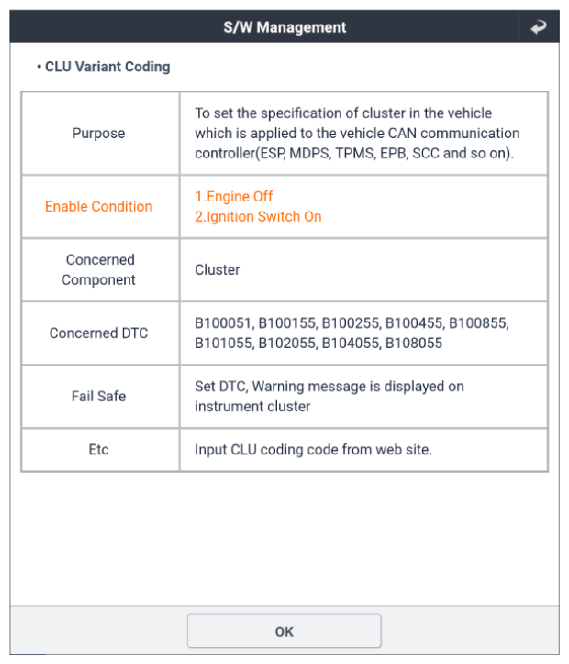

G13484998Courtesy of KIA MOTORS AMERICA, INC.

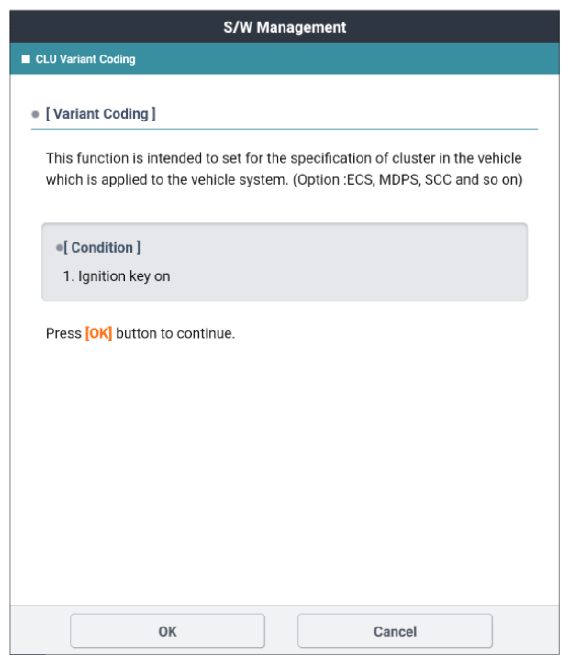

G13484999Courtesy of KIA MOTORS AMERICA, INC.

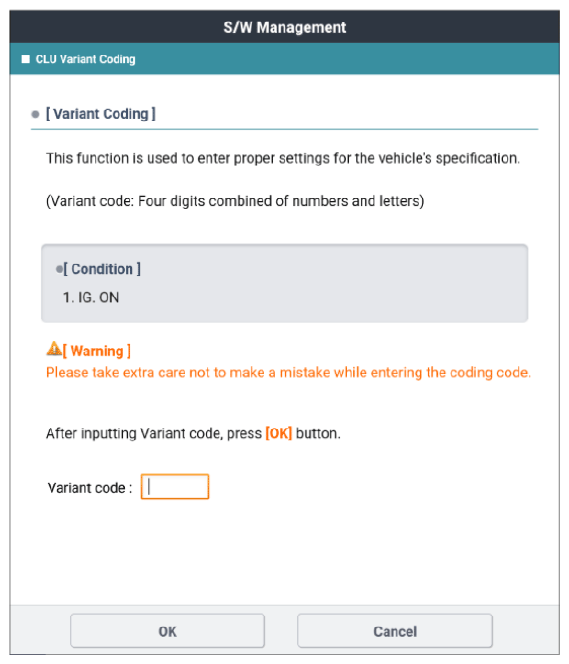

G13485000Courtesy of KIA MOTORS AMERICA, INC.
G13485001Courtesy of KIA MOTORS AMERICA, INC.
