Vehicle S/W Management

WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.
Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "VEHICLE S/W MANAGEMENT " of concerned component with KDS.
Fig.1 to 5
G13484931Courtesy of KIA MOTORS AMERICA, INC.

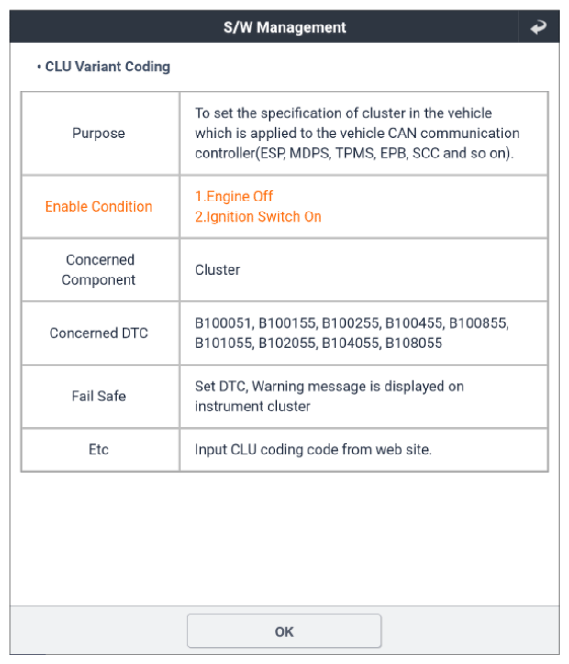

G13484932Courtesy of KIA MOTORS AMERICA, INC.

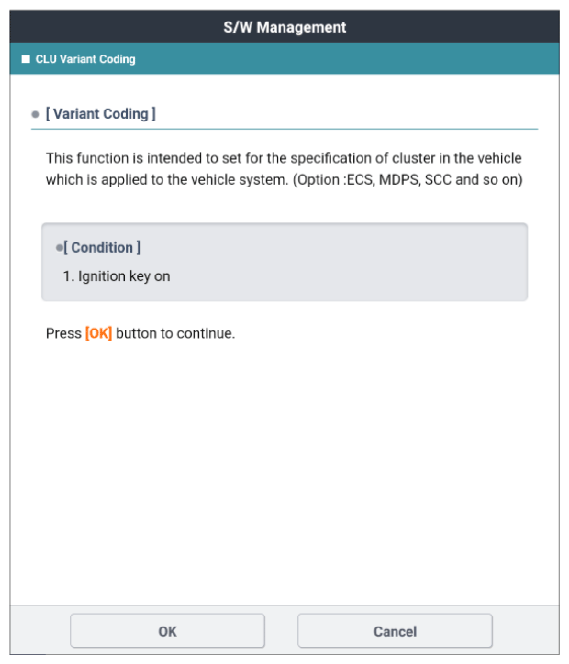

G13484933Courtesy of KIA MOTORS AMERICA, INC.

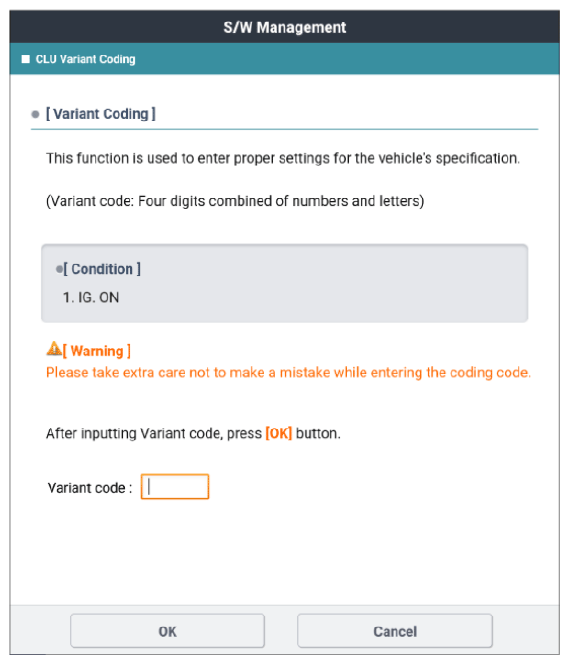

G13484934Courtesy of KIA MOTORS AMERICA, INC.
G13484935Courtesy of KIA MOTORS AMERICA, INC.
