Repair Procedures: Removal

  1. Turn ignition switch OFF and disconnect the battery negative (-) terminal.
  2. Remove the engine cover.

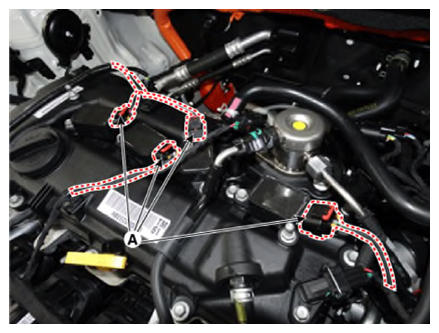

  3. Disconnect the ignition coil connector (A).
    G13387893Courtesy of KIA MOTORS AMERICA, INC.

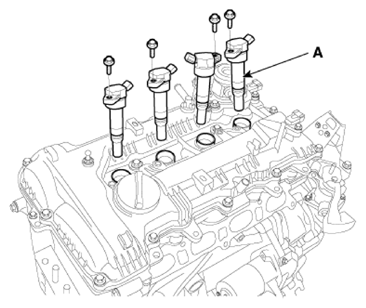

  4. Remove the ignition coil (A) after loosening the mounting bolt.
    G13387894Courtesy of KIA MOTORS AMERICA, INC.

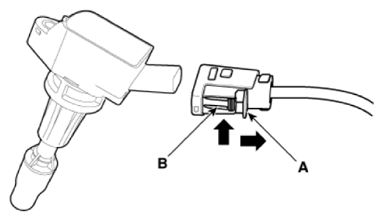

    NOTE: When removing the ignition coil connector, pull the lock pin (A) and push the clip (B).
    G13387895Courtesy of KIA MOTORS AMERICA, INC.
