Repair Procedures: Replacement

WARNING: This page is about a different car, the 2020 Hyundai Kona. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

Put on gloves to prevent hand injuries.

NOTE:

When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
Take care not to scratch the body surface.

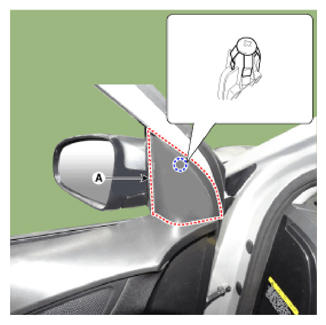

Using a screwdriver or remover, remove the front door quadrant inner cover (A).

Courtesy of HYUNDAI MOTOR AMERICA

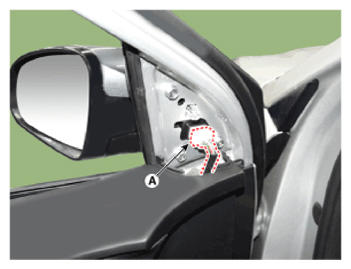

Disconnect the outside rear view mirror connector (A).

Courtesy of HYUNDAI MOTOR AMERICA

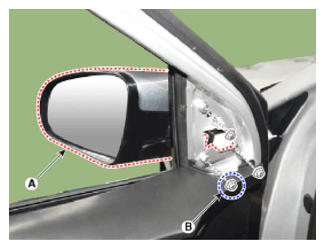

After loosening the mounting nuts, remove the outside rear view mirror (A).
Tightening Torque:

6.9 - 10.8 N.m (0.7 - 1.1 kgf.m, 5.1 - 8.0 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

Information
- When removing the nut (B), be sure to remove it using a spanner.

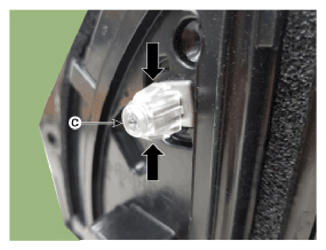

- Remove the mirror assembly with pressing the upper and lower flanges (C) of temporary fixing clip.
Courtesy of HYUNDAI MOTOR AMERICA
To install, reverse removal procedure.
Information
- Make sure the connector is connected properly.
- Replace any damaged clips (or pin-type retainers).
