Repair Procedures: Replacement: Outside

WARNING: This page is about a different car, the 2022 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.

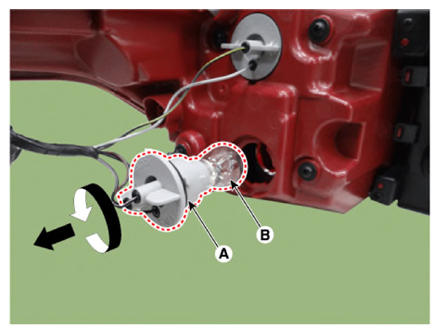

[Tail/Stop lamp]

Disconnect the negative battery terminal.
Remove the outside rear combination lamp.
Remove the socket (A) by rotating counterclockwise.
Replace the bulb (B) from the socket.

Courtesy of KIA MOTORS AMERICA, INC.

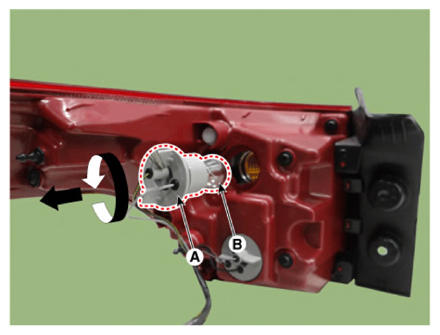

[Turn signal lamp]

Remove the outside rear combination lamp.
Remove the socket (A) by rotating counterclockwise.
Replace the bulb (B) from the socket.

Courtesy of KIA MOTORS AMERICA, INC.
