Repair Procedures: Replacement: Inside

WARNING: This page is about a different car, the 2022 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.

[Back up lamp]

  1. Disconnect the negative battery terminal.
  2. Remove the rear combination lamp service cover (A) by using a flat-tip screwdriver or remover.
    G13486854Courtesy of KIA MOTORS AMERICA, INC.

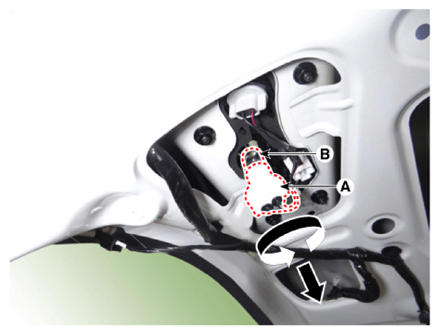

  3. Remove the socket (A) by rotating counterclockwise.
  4. Replace the bulb (B) from the socket.
    G13486855Courtesy of KIA MOTORS AMERICA, INC.

[Tail lamp]

  1. Disconnect the negative battery terminal.

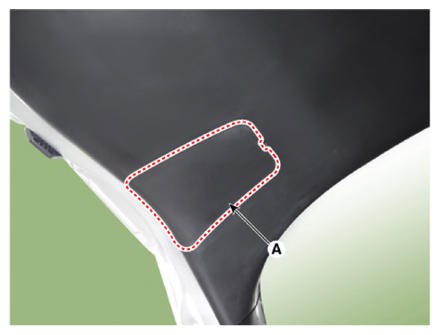

  2. Remove the rear combination lamp service cover (A) by using a flat-tip screwdriver or remover.
    G13486856Courtesy of KIA MOTORS AMERICA, INC.

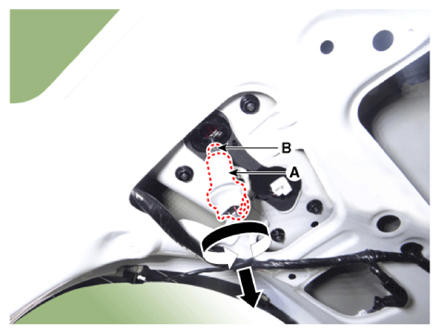

  3. Remove the socket (A) by rotating counterclockwise.
  4. Replace the bulb (B) from the socket.
    G13486857Courtesy of KIA MOTORS AMERICA, INC.
