Repair Procedures: Removal

WARNING: This page is about a different car, the 2022 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery terminal.

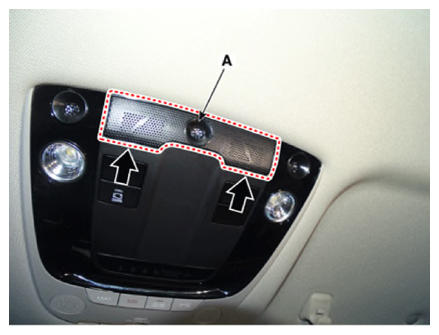

  2. Remove the overhead console lamp mic grill (A) by using a flat-tip screwdriver or remover.
    G13486836Courtesy of KIA MOTORS AMERICA, INC.

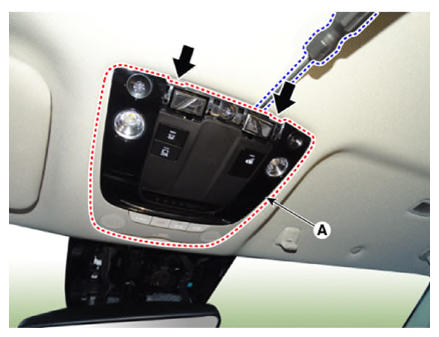

  3. Remove the overhead console lamp (A) by using a flat-tip screwdriver or remover.
    G13486837Courtesy of KIA MOTORS AMERICA, INC.

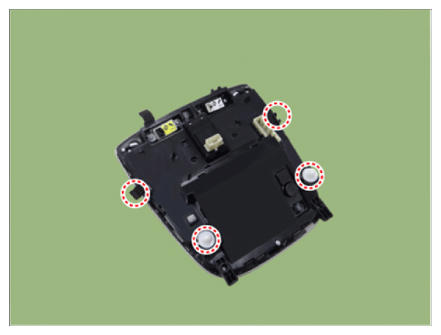

    Information

    Replace any damaged clips.

    G13486838Courtesy of KIA MOTORS AMERICA, INC.

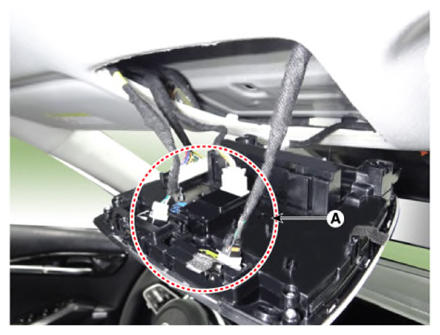

  4. Disconnect the all connectors (A) from the overhead console lamp.
    G13486839Courtesy of KIA MOTORS AMERICA, INC.
