LED Driver Module (LDM)

WARNING: This page is about a different car, the 2022 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the headlamp assembly.

    (Refer to Headlamp - "REMOVAL ")

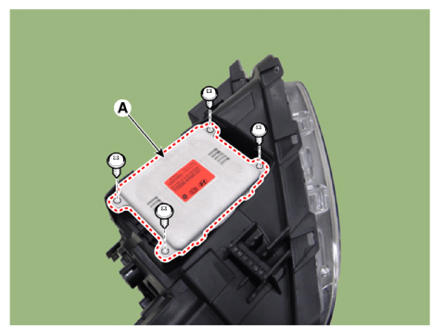

  2. Remove the LDM (A) by loosening the screws.
    G13486803Courtesy of KIA MOTORS AMERICA, INC.

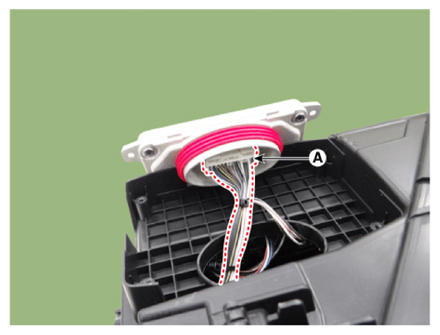

  3. Disconnect the LDM connector (A).
    G13486804Courtesy of KIA MOTORS AMERICA, INC.
