Repair Procedures: Replacement

WARNING: This page is about a different car, the 2020 Hyundai Kona. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative (-) battery terminal.

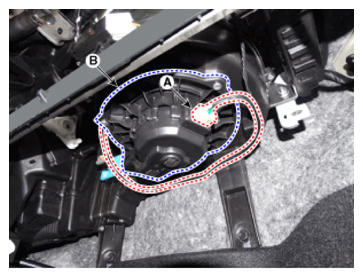

  2. Disconnect the blower motor connector (A) and then remove the blower motor (B) after loosening the screws.
    G12606328Courtesy of HYUNDAI MOTOR AMERICA
  3. To install, reverse the removal procedure.
