Terminal Function

WARNING: This page is about a different car, the 2022 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.

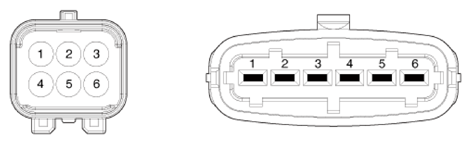

G13481644Courtesy of KIA MOTORS AMERICA, INC.
PIN No Function
1 Ground
2 CAN High
3 CAN Low
4 Vacuum sensor
5 IGN 1
6 Battery (+)
