Repair Procedures: Removal

WARNING: This page is about a different car, the 2022 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.

Remove the front wheel and tire.
(Refer to Suspension System - "WHEEL ")

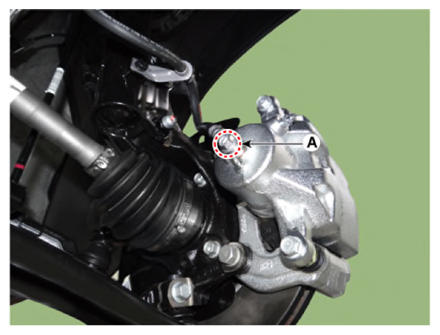

Remove the brake hose (A) from the brake caliper by loosening the bolt.
Tightening torque:

24.5 - 29.4 N.m (2.5 - 3.0 kgf.m, 18.1 - 21.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

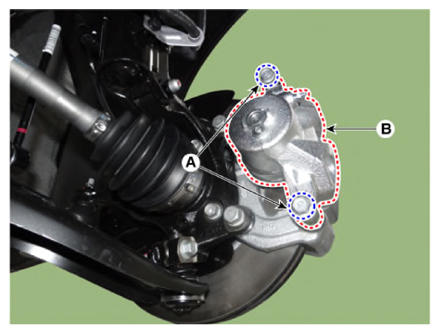

Remove the caliper housing (B) by loosening the guided rod bolts (A).
Tightening torque:

21.6 - 31.4 N.m (2.2 - 3.2 kgf.m, 15.9 - 23.1 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

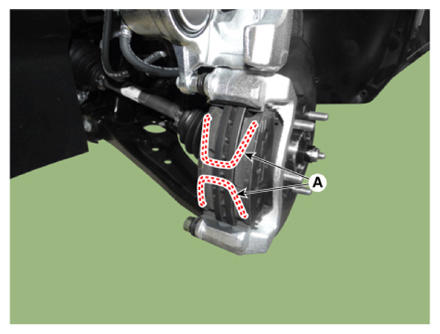

Remove the pad return springs (A).

Courtesy of KIA MOTORS AMERICA, INC.

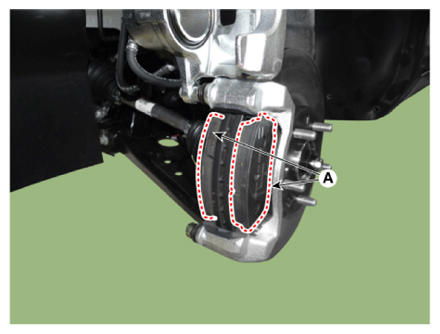

Remove the brake pads (A).

Courtesy of KIA MOTORS AMERICA, INC.

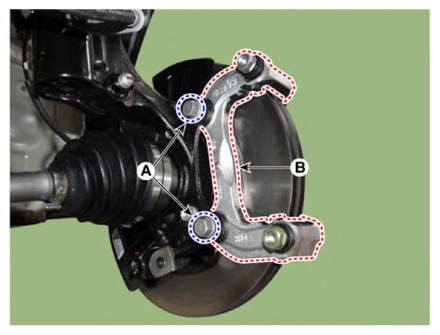

Remove the caliper carrier (B) by loosening the bolts (A).
Tightening torque:

83.4 - 98.1 N.m (8.5 - 10.0 kgf.m, 61.5 - 72.3 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
