Fuse Inspection

WARNING: This page is about a different car, the 2022 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.

Mount the test fuse to the switch fuse and relay fuse part to confirm a normal joint fit.

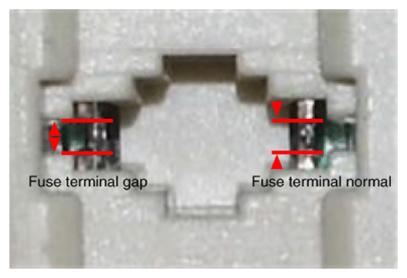

G13481677Courtesy of KIA MOTORS AMERICA, INC.

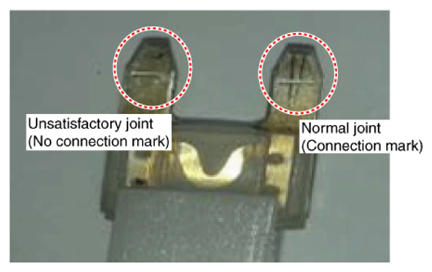

G13481678Courtesy of KIA MOTORS AMERICA, INC.
