Repair Procedures: Removal

WARNING: This page is about a different car, the 2022 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery terminal.
  2. Remove the overhead console lamp.

    (Refer to Lighting System - "OVERHEAD CONSOLE LAMP ")

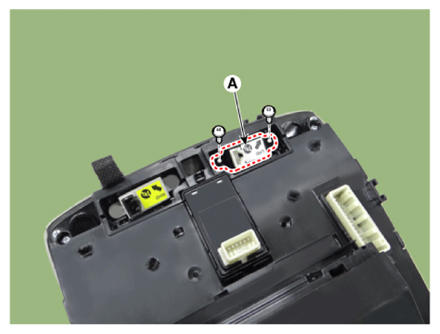

  3. Remove the handsfree mic (A) after loosening the screws.
G13486610Courtesy of KIA MOTORS AMERICA, INC.
